Blackmagic HyperDeck Studio HD Mini

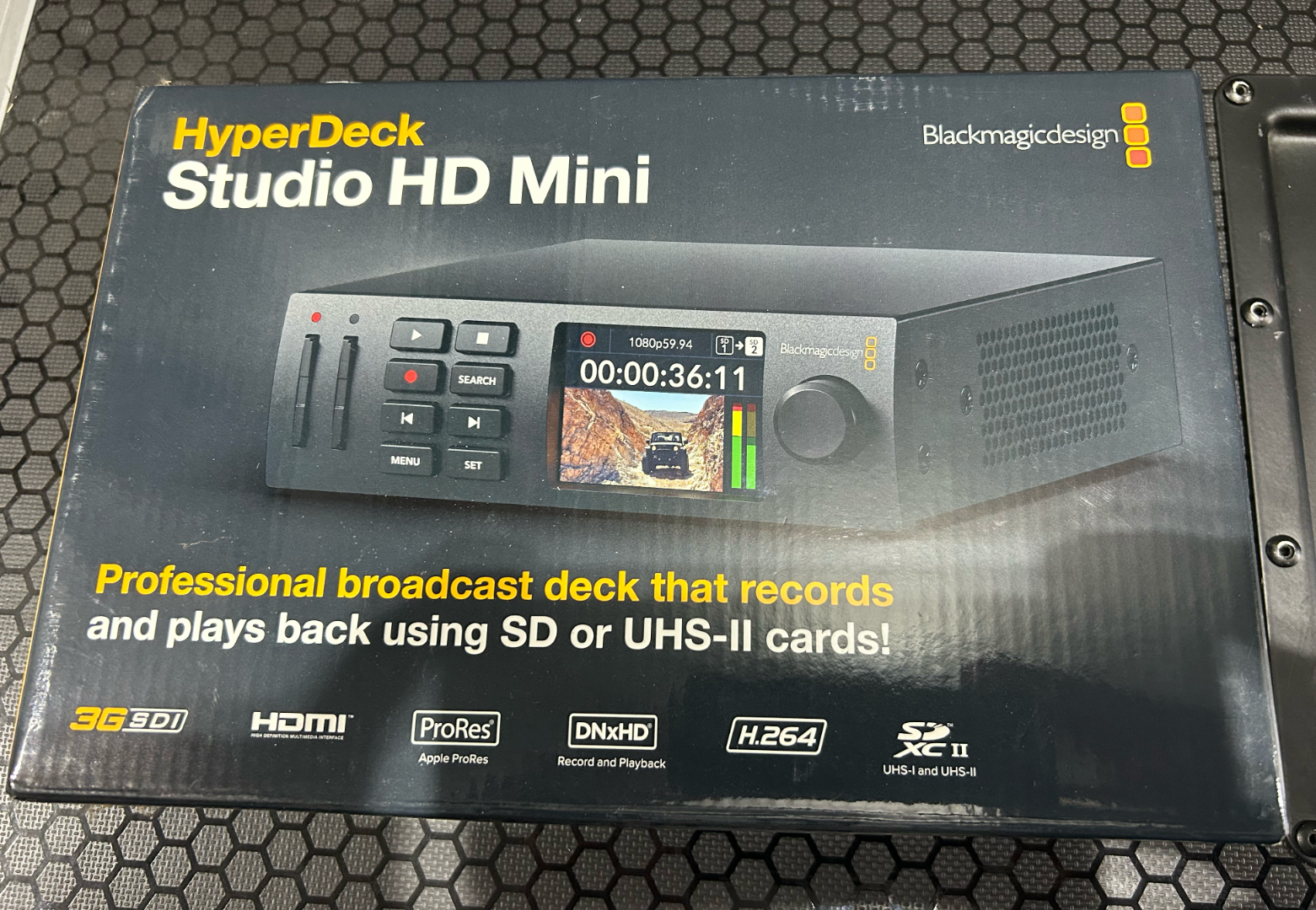

I am selling a Blackmagic HyperDeck Studio HD Mini—complete with its original box—because it is no longer being used; it has been used on only two occasions and is therefore in like-new condition. I am also selling a Blackmagic ATEM 2 M/E Constellation HD in a separate listing.

The Blackmagic Design HyperDeck Studio HD Mini is the smallest model in the HyperDeck Studio family, featuring a compact design that fits perfectly alongside Teranex Mini converters. Its modular design allows you to combine up to three HyperDeck Studio HD Mini units—or place them side-by-side with other devices like switchers, converters, or streaming processors—within a single rack space using the Teranex Mini Rack Shelf.
Despite its small size, the HyperDeck Studio HD Mini delivers exceptional performance and functionality. It supports recording and playback in ProRes format at resolutions up to 1080p60 via SDI connectivity, making it easy to capture and play back high-quality video.

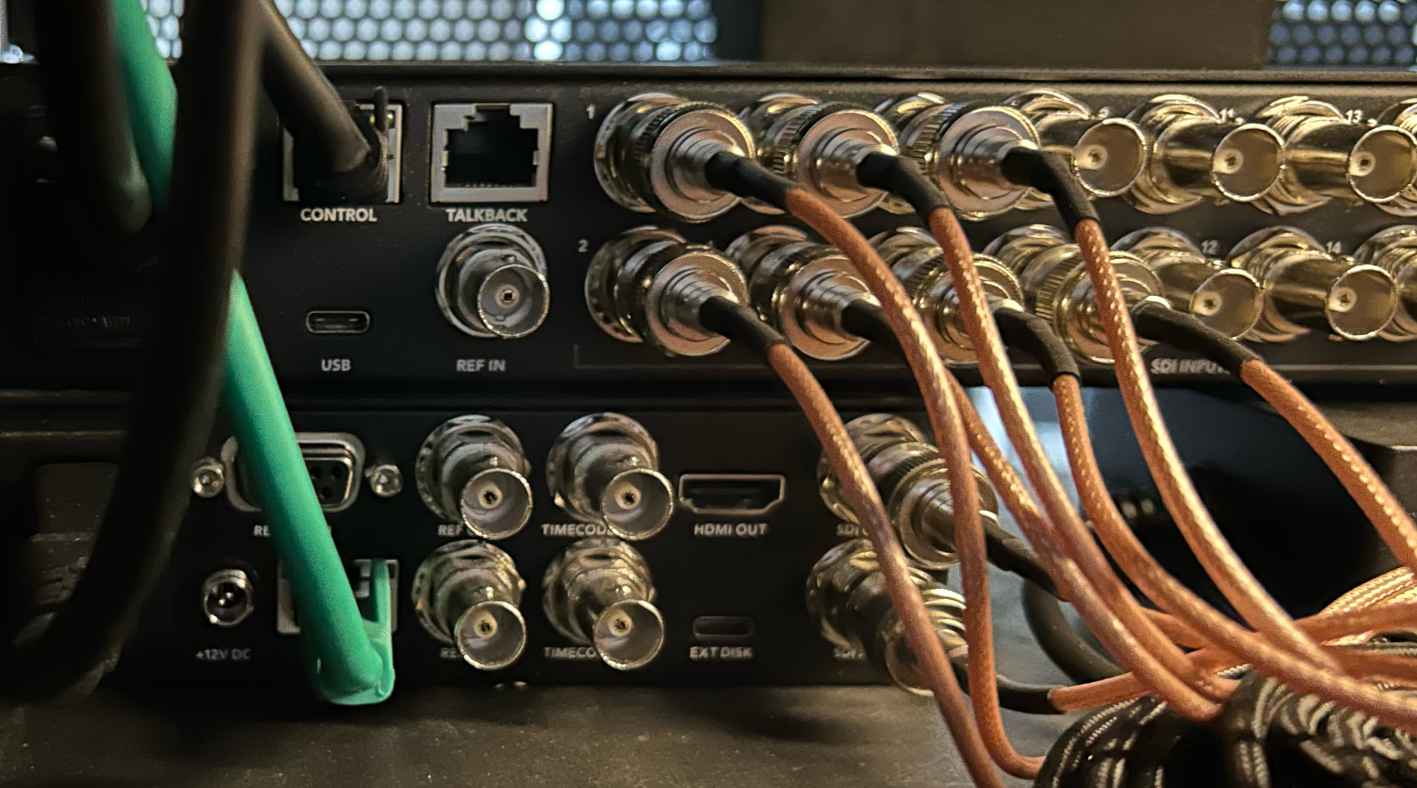

It also supports Blackmagic RAW file recording and playback, offering greater creative control and flexibility during post-production. It is equipped with SDI and HDMI connectors to ensure compatibility with a wide range of devices and production systems. Characteristics
• SDI Video I/O: 1
• SDI Rates: 270Mb, 1.5G, 3G
• HDMI Video Outputs: 1

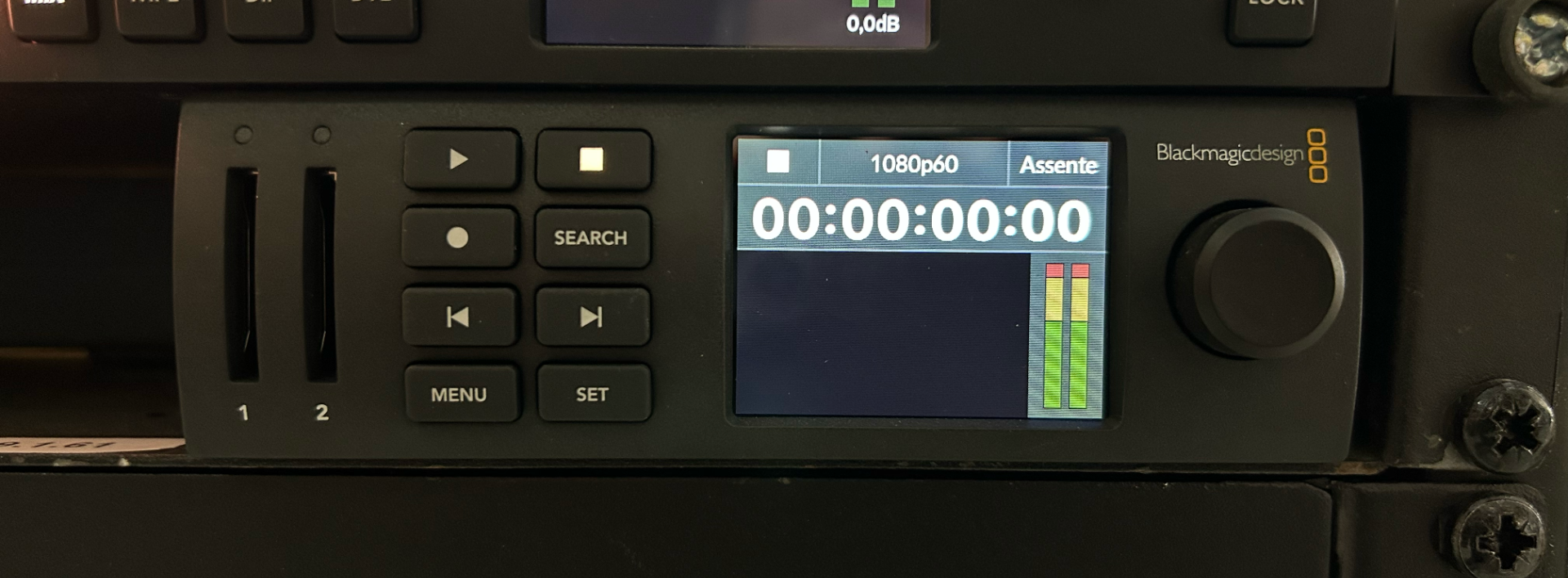

• Screen: 2.2 inch LCD
• Timecode Connections: 1xBNC In, 1xBNC Out
• Reference Connections: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst
• SDI Audio Inputs: 16 channels embeddedaudio
• SDI Audio Outputs: 16 channels embedded audio
• HDMI Audio Outputs: 8 channels embedded audio
• Remote Control: 1xRS-422 In
• Recorder Configuration: Via user interface or Blackmagic HyperDeck
• Ethernet: 1Gb/s
• Computer Interface: 1xUSBType-C 3.0(up to 5Gb/s)
• SD Video Standards: 525i59.94 NTSC, 625i50PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60...2Kp30DCI
• SDI Compliance: SMPTE259M, SMPTE292M, SMPTE296M, SMPTE372M, etc...
• Supported HDMI Formats: 525i59.94NTSC, 625i50PAL, 720p50, 720p59.94, 720p60,1080i50, 1080i59.94, 1080i60, etc...
• Audio Sampling: Television standard 24‑bit, 48kHz sample rate
• Video Sampling: 4:2:2 YUV
• Color Precision: 10‑bit
• Color Space: REC601, REC709, REC2020
• HDR Support: Hybrid Log‑Gamma, ST2084300, ST2084500, ST2084800, ST20841000, ST20842000, ST20844000, ST2084
• Media: 2xSD card slots1 x USB-C 3.0
• Media Type: UHS-I and UHS-II SD cards
• Media Format: ExFAT (Windows/Mac)or HFS+(Mac) filesystems
• Supported Codecs: ProRes HQ QuickTime, ProRes422QuickTime, ProResLTQuickTime, etc...
• Controls: RS-422 deck control, SDI start/stop, timecode run
• Software Included: Blackmagic OSBlackmagic HyperDeck, Setup Internal Software UpgradeLoaded at system start, , Blackmagic HyperDeck Setup using USB port
• Compatibility: Mac 10.15 Catalina, Mac 11.1 Big Sur and later. Windows 10.64-bit
