Price: 1 400,00 € brutto incl.22% tax
1 147,54 € netto excl. 22% tax
Per Piece basis for negotiation
Count Available 1
Created On: 14.10.2026 11:47
Condition:
Used
1 147,54 € netto excl. 22% tax
Per Piece basis for negotiation
Count Available 1
Created On: 14.10.2026 11:47
Condition:
Used
I am selling a Blackmagic ATEM 2 M/E Constellation HD (with original box) because it is not being used; it has been used on only two occasions and is therefore in like-new condition. I am also selling a Blackmagic HyperDeck Studio HD Mini in a separate listing; when paired with the Constellation, it enables recording or playback to SD cards or hard drives.

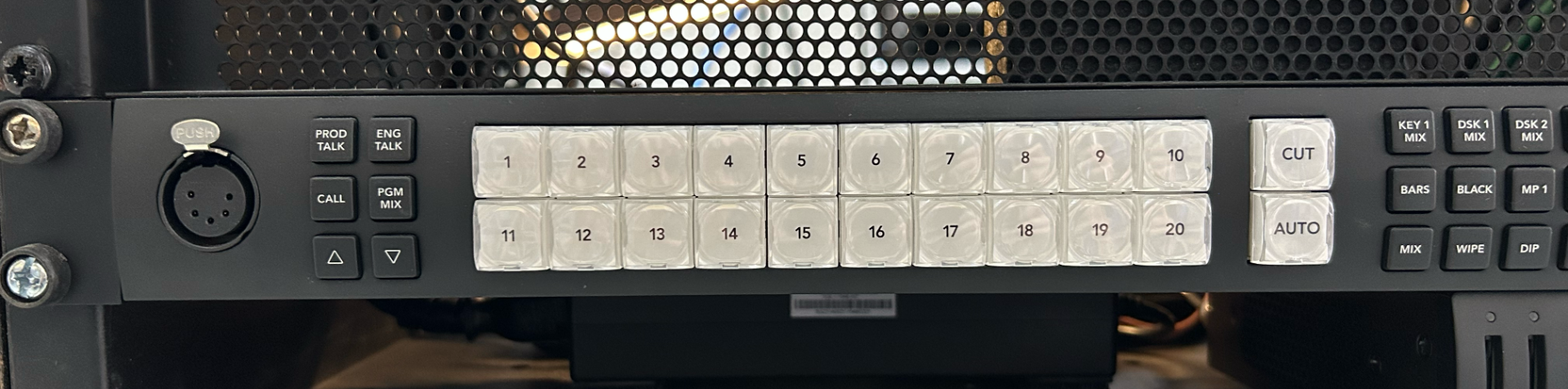

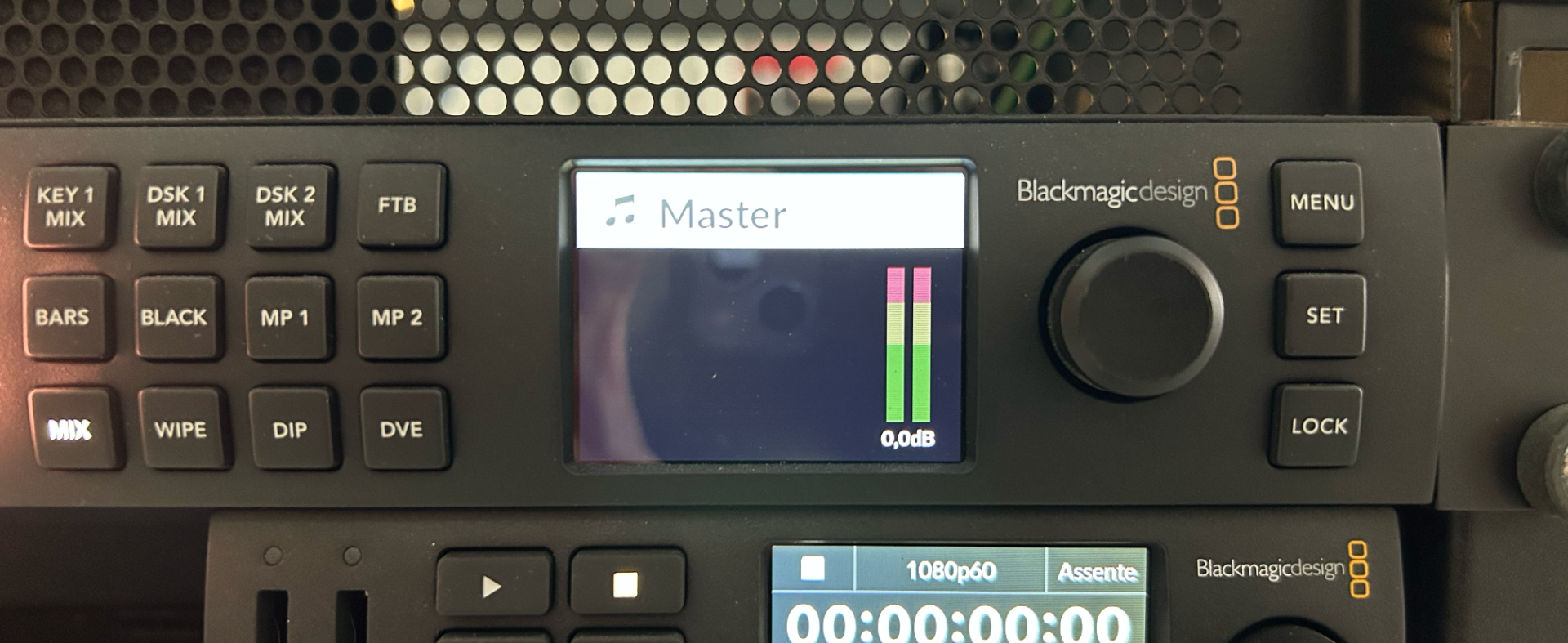

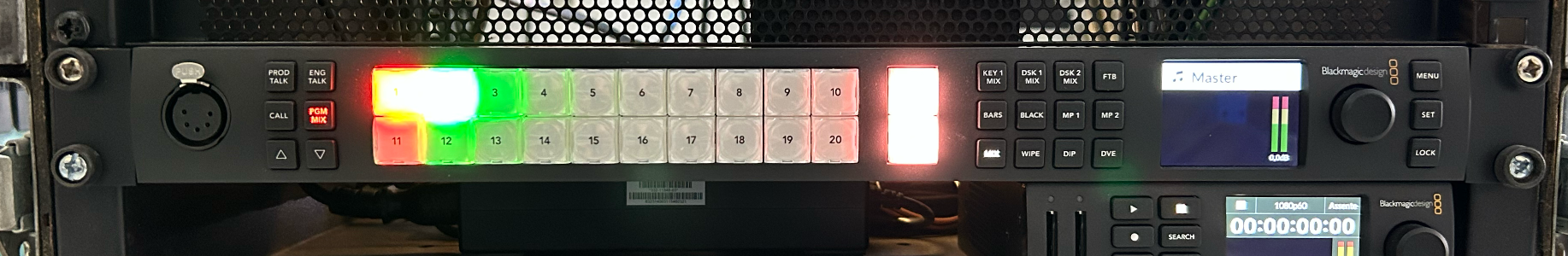

The Blackmagic ATEM 2 M/E Constellation HD is a high-definition live production switcher packed with advanced features. Its dual M/E (Mix/Effect) design includes 20 3G-SDI inputs with standards conversion and 12 independent 3G-SDI aux outputs. It also offers a USB webcam output, a SuperSource processor, DVE, chroma keyers, media players, multiview, and much more. It includes talkback functionality and a professional Fairlight audio mixer with EQ and dynamics.
Technical Specifications

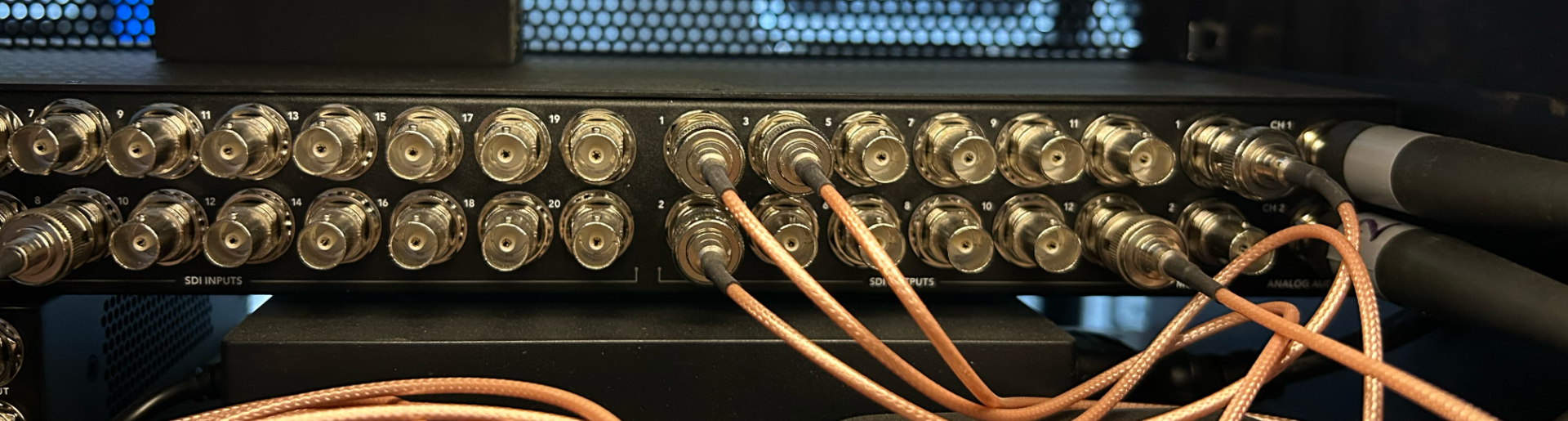

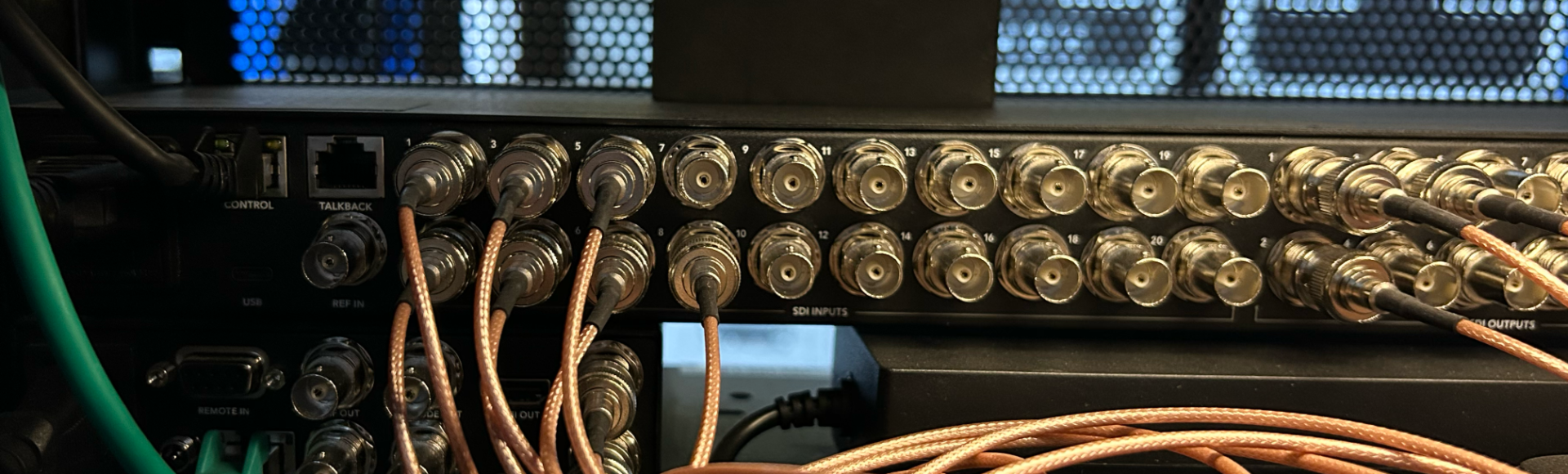

• Total Video Inputs: 20
• Total Video Outputs: 12
• SDI Rates: 1.5G, 3G
• Total Audio Inputs: 2 x balanced 1/4-inch jack; 1 x 5-pin XLR Talkback.
• Total Audio Outputs: 1 x 5-pin XLR Talkback.
• SDI Audio Inputs: 2-channel embedded audio on all SDI inputs.
• SDI Audio Outputs: 2-channel embedded audio on all SDI outputs.
• Timecode Connections: None
• Reference Input: Tri-Sync or Black Burst.
• Video Input Re-Sync: On all 20 inputs.
• Frame Rate and Format Converters: On all 20 inputs.
• SDI Aux Outputs: Any of the 12 SDI outputs.
• SDI Preview Outputs: Any of the 12 SDI outputs.
• SDI Program Outputs: Any of the 12 SDI outputs. • Down Converted SDI Program Output: None
• Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
• Total Multi Views: 2 x 3G-SDI
• Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
• Internal Timecode Generator: Yes
• Talkback: RJ45 for 3rd party talkback systems.
• Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
• Ethernet: Supports 10/100/1000 BASE-T.
• Computer Interface: 1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)
The Blackmagic ATEM 2 M/E Constellation HD is a high-definition live production switcher packed with advanced features. Its dual M/E (Mix/Effect) design includes 20 3G-SDI inputs with standards conversion and 12 independent 3G-SDI aux outputs. It also offers a USB webcam output, a SuperSource processor, DVE, chroma keyers, media players, multiview, and much more. It includes talkback functionality and a professional Fairlight audio mixer with EQ and dynamics.
Technical Specifications
• Total Video Inputs: 20
• Total Video Outputs: 12
• SDI Rates: 1.5G, 3G
• Total Audio Inputs: 2 x balanced 1/4-inch jack; 1 x 5-pin XLR Talkback.
• Total Audio Outputs: 1 x 5-pin XLR Talkback.
• SDI Audio Inputs: 2-channel embedded audio on all SDI inputs.
• SDI Audio Outputs: 2-channel embedded audio on all SDI outputs.
• Timecode Connections: None
• Reference Input: Tri-Sync or Black Burst.
• Video Input Re-Sync: On all 20 inputs.
• Frame Rate and Format Converters: On all 20 inputs.
• SDI Aux Outputs: Any of the 12 SDI outputs.
• SDI Preview Outputs: Any of the 12 SDI outputs.
• SDI Program Outputs: Any of the 12 SDI outputs. • Down Converted SDI Program Output: None
• Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
• Total Multi Views: 2 x 3G-SDI
• Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
• Internal Timecode Generator: Yes
• Talkback: RJ45 for 3rd party talkback systems.
• Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
• Ethernet: Supports 10/100/1000 BASE-T.
• Computer Interface: 1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)
