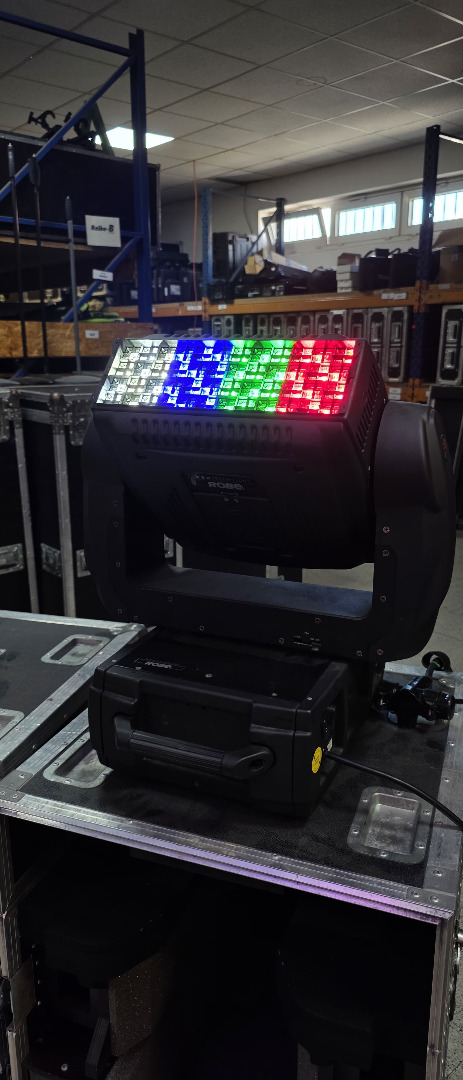

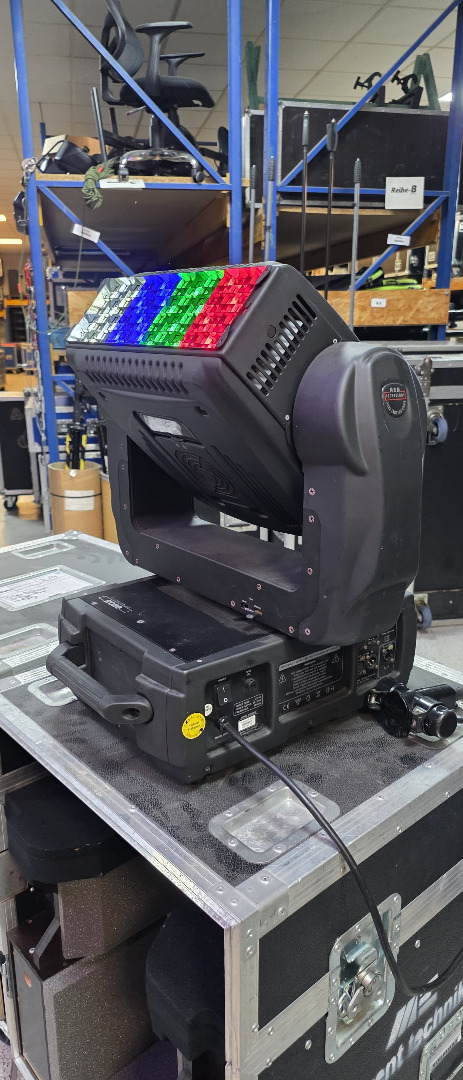

Robe 3REDWash 3•192™

REDWash 3•192 is ROBE’s NEW powerful moving head Wash Light, which is based upon RED Technology (Robe Emitted Diodes) series. REDWash 3•192 provides a rectangular light field with a narrow beam spread. Unlike often seen similar effects this fixture provides a unique and fresh approach to concert touring, TV and Event Lighting applications.


Technische Spezifikation
Leistungsaufnahme
• Electronic auto-ranging
• Input voltage: 90 - 250V AC, 50-60Hz
• Max. power consumption: 450W (Eco mode), 750W (Max mode)
Optisches System & Effekte

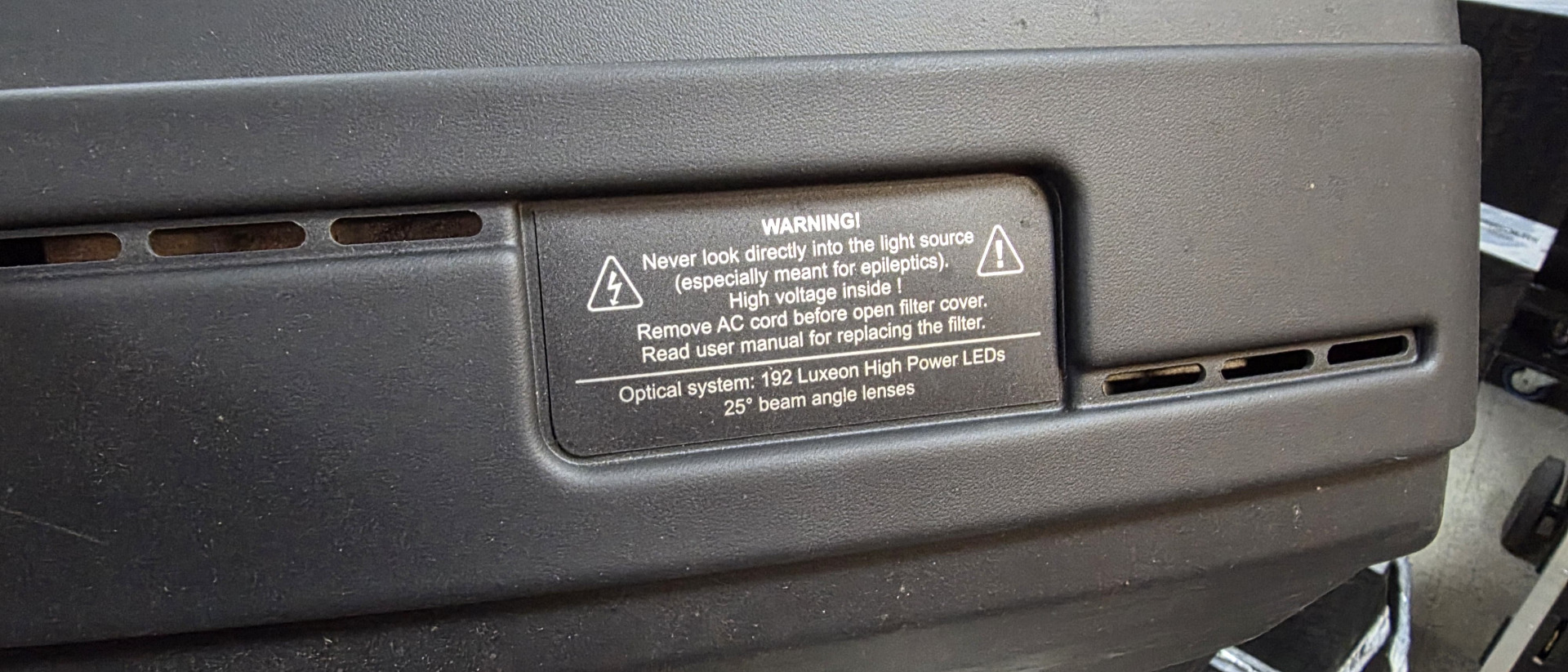

• Light source: 192 Luxeon Rebel LEDs (RGBW)

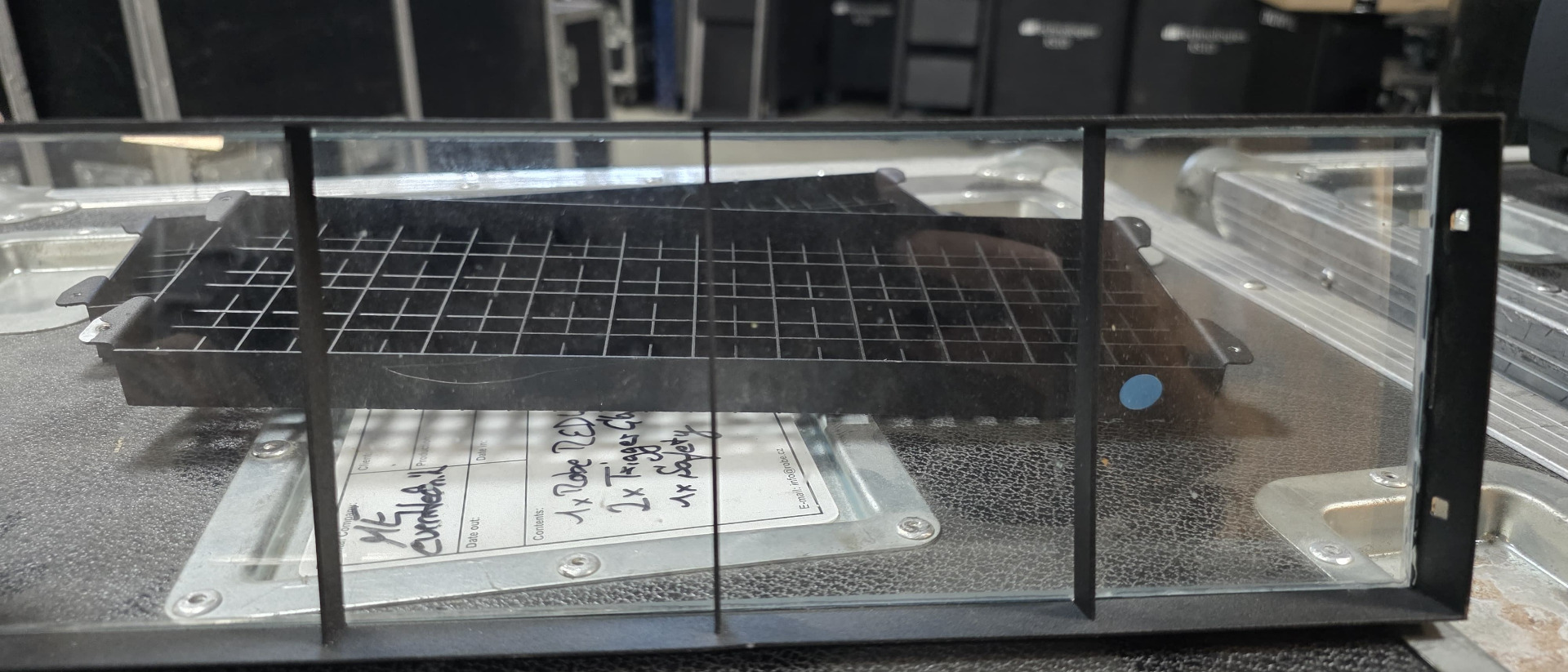

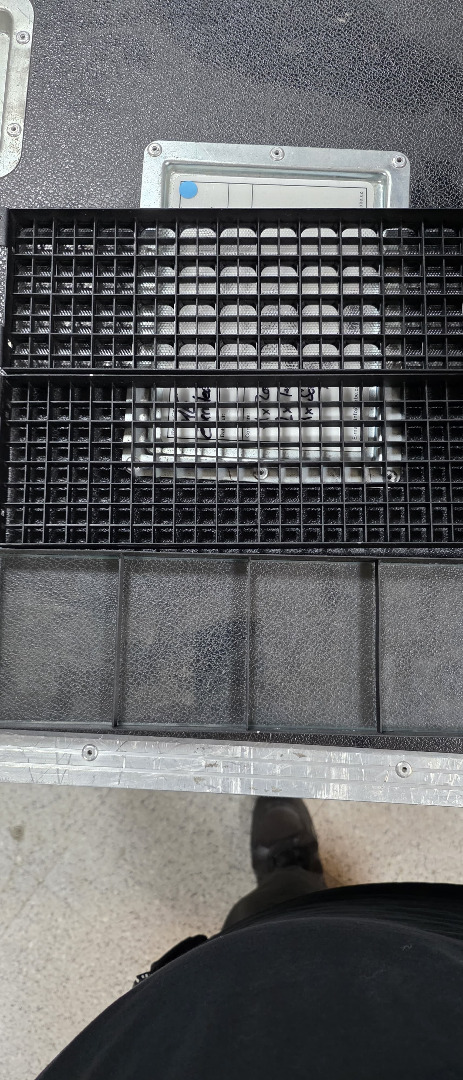

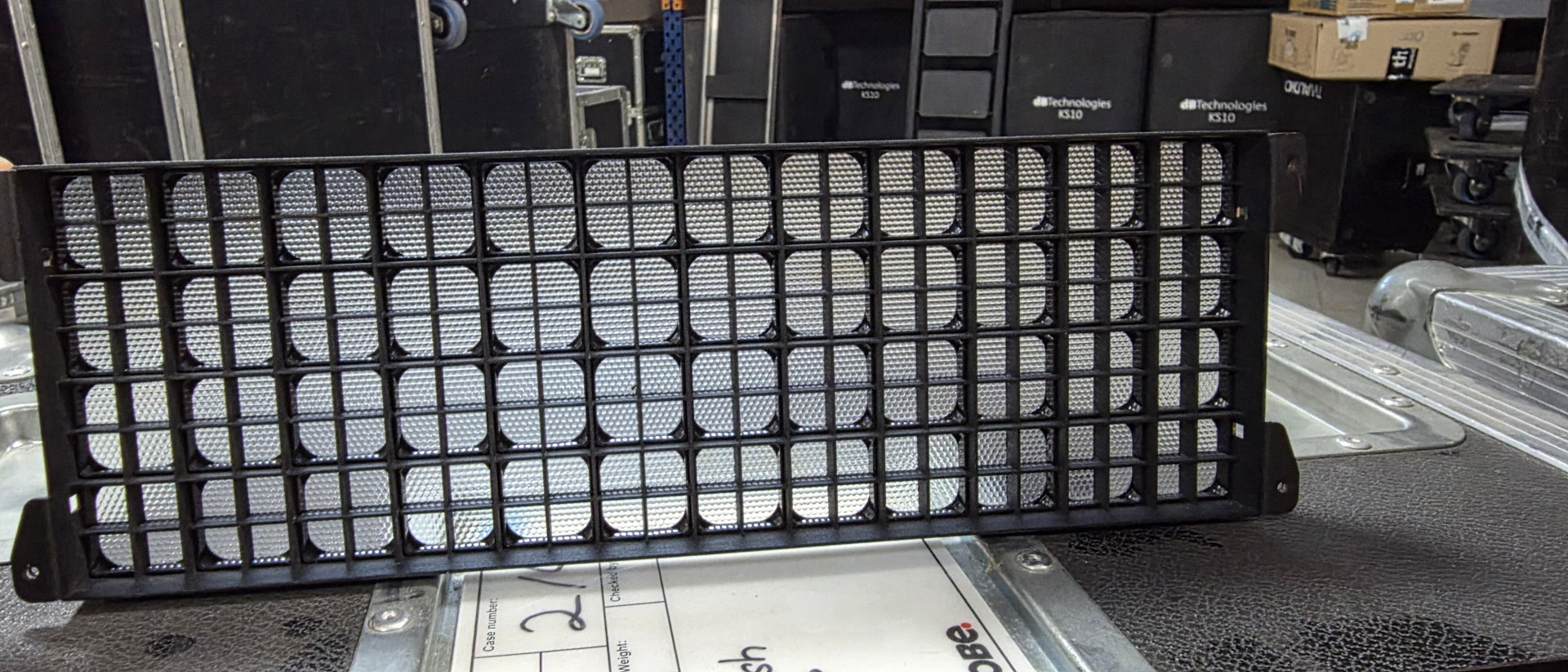

• Optical system: 12° without lens-array, 25° lens-array (standard); 45° and 45°x15° lens-array (optional)
Possibility of fitting additional frost film filters
• Led Life Expectancy: minimum 60.000 hours
• Typical Lumen Maintenance: 70% @ 60.000 hours
• RGBW colour mixing
• Built-in colour macros
• Adjustable strobe sequences
• Fine dimmer
• White colour balance adjusting
• Strobe effect with variable speed (max. 20 flashes per second)
• Pre-programmed random strobe pulse-effects
Control panel: graphic LCD display and ROBE navigation system
• Control: USITT DMX 512 RDM support, Art-Net protocol (ready for ACN)
• DMX protocol modes: 5 (8, 16, 24 or 28 control channels)
• Control options: DMX, Auto-trigger, Audio-trigger
• Operations modes: DMX, Stand-alone
• Manual control of all effects via control panel

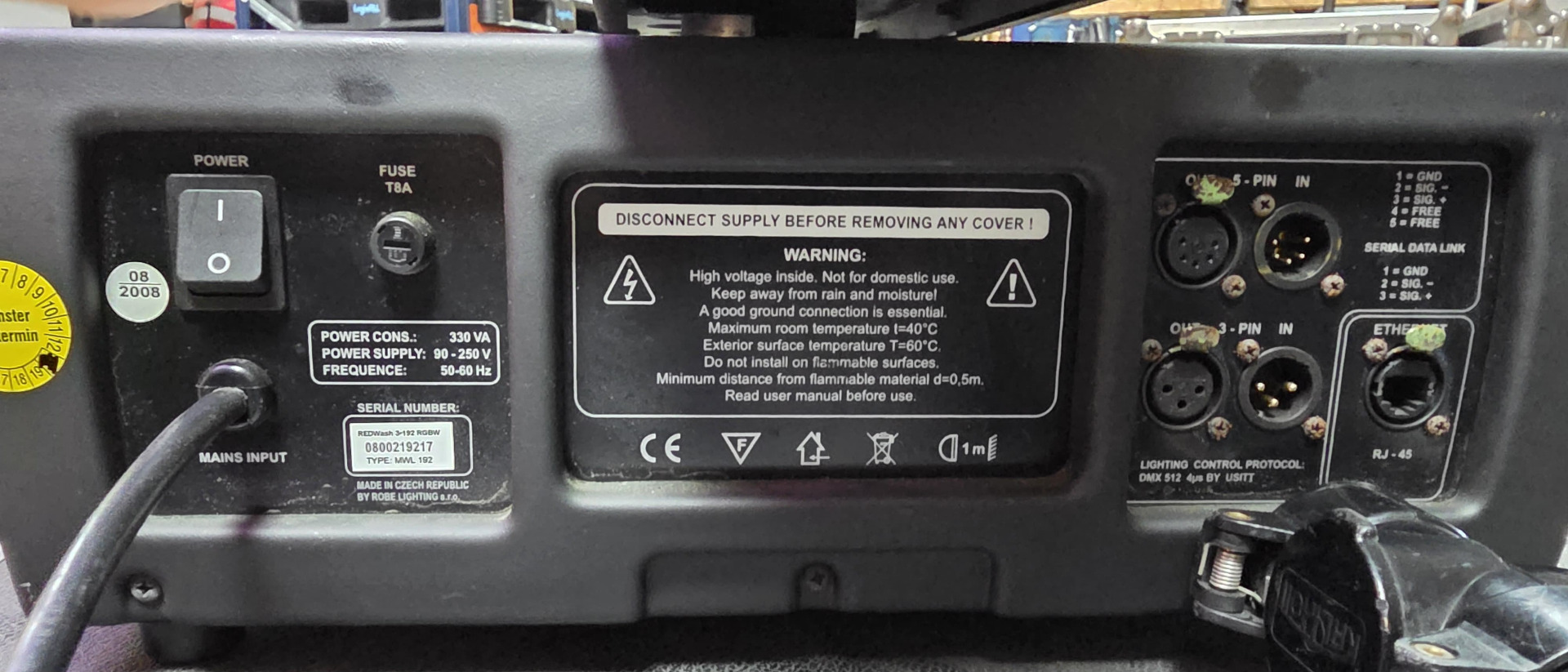

• DMX data in/out: Locking 3-pin and 5-pin XLR
• AC power input: 1.5 m power cord without plug
• Ethernet: RJ45
