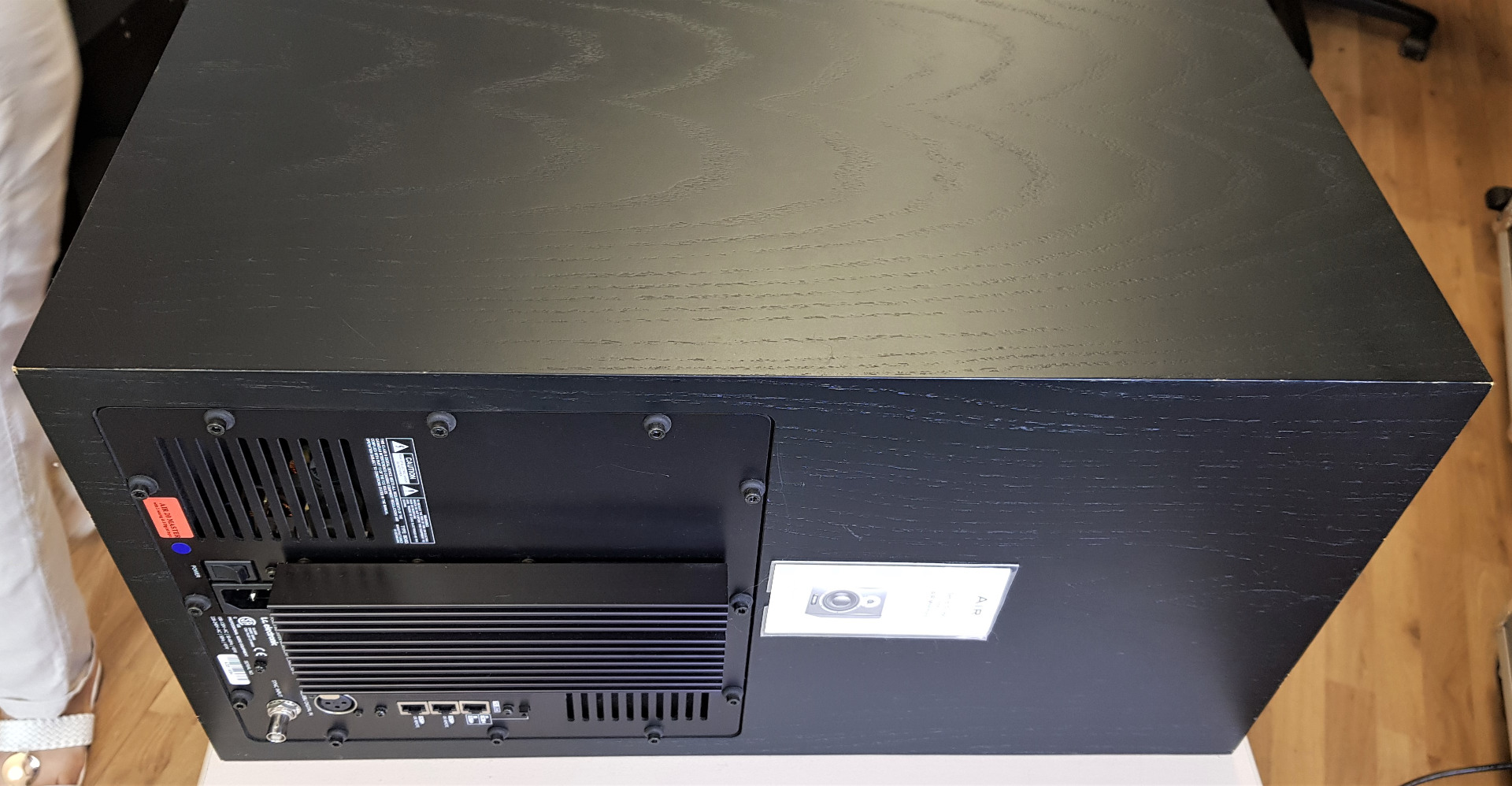

Dynaudio Dynaudio aktive Studio- Lautsprecher - Air 20 - Master und Slave - Stereo Set, analog + digital AES/EBU

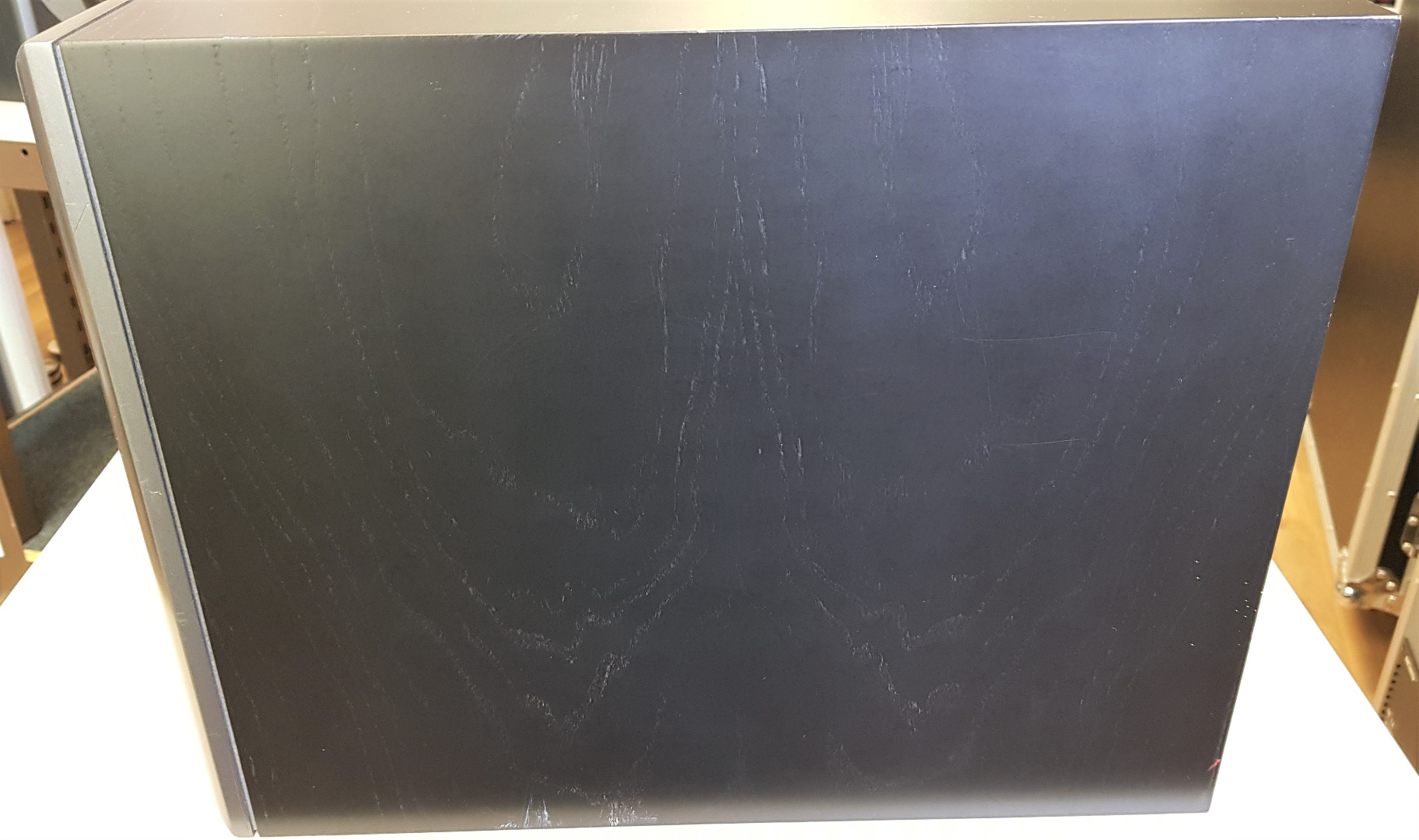

Gebrauchte Lautsprecher, leichte Gebrauchsspuren, aus Nichtraucherumgebung

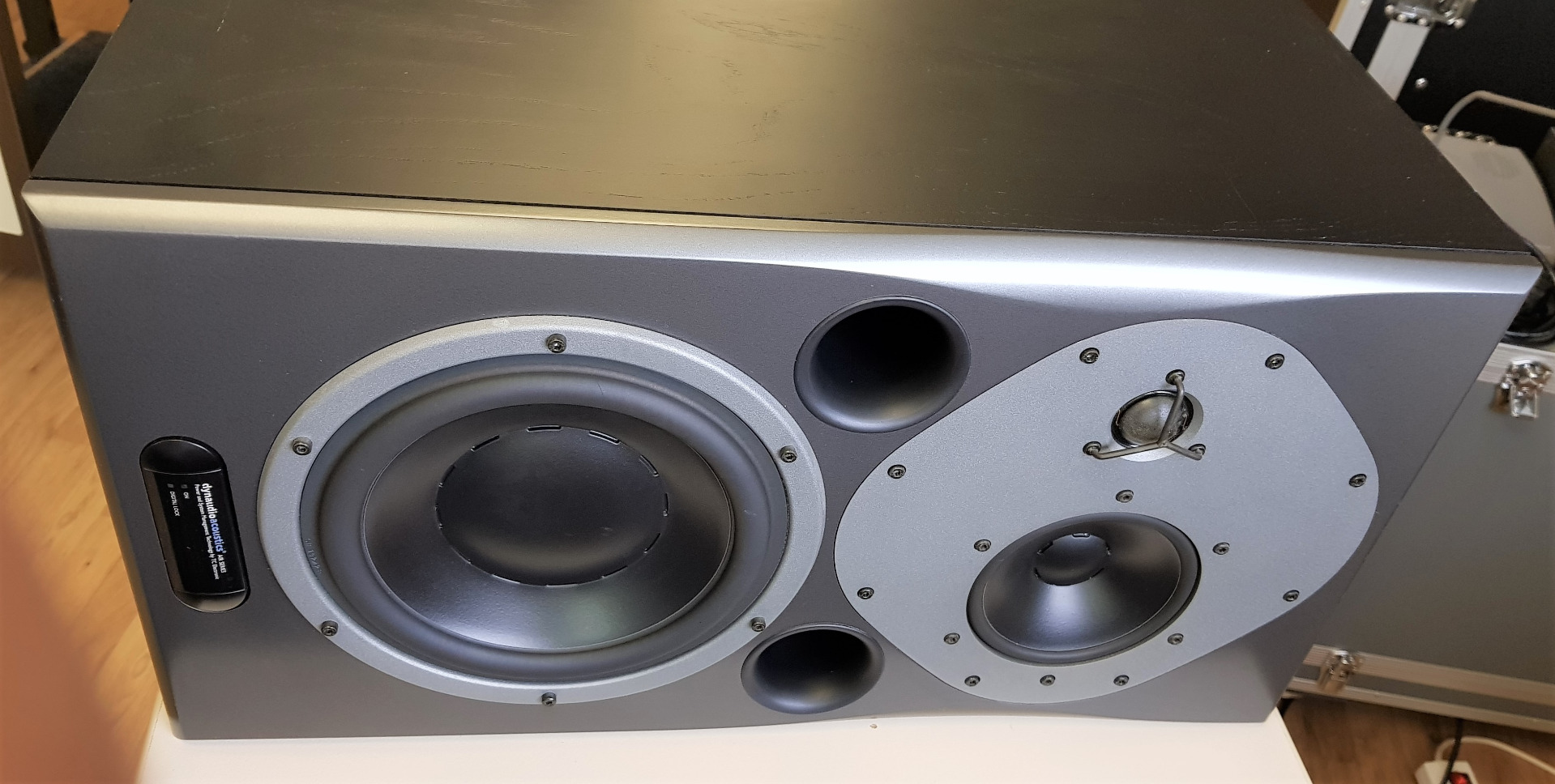

Ein Hochtöner hat eine kleine Delle, funktioniert aber ohne Einschränkungen!

Hinweis:
In einer anderen Anzeige biete ich auch noch einen Sub-Base Dynaudio AIR Base 12 an.

Features

High accuracy drivers hand built in Denmark
10" molded woofer, polypropylene cone w/ 3" pure aluminum voice coil
5.5" molded polypropylene cone, pure aluminum voice coil
1.1" soft dome tweeter, rear chamber magnetic fluid, pure aluminum voice coil
192 kHz support via Dual Wire
The new 221 (two-to-one) design - Integrating unique Tweeter and Midrange technology
Bass Management, with selectable frequency crossover points
Advanced Bass Management
Acoustic Placement Compensation
Preset Storage and RecallProgrammable reference levels
Level alignment in 0,1 dB steps
All Monitors aligned within +/- 0.2 dB precision
Integrated Parametric EQs and delay in each monitor (only accessible with PC-IP)

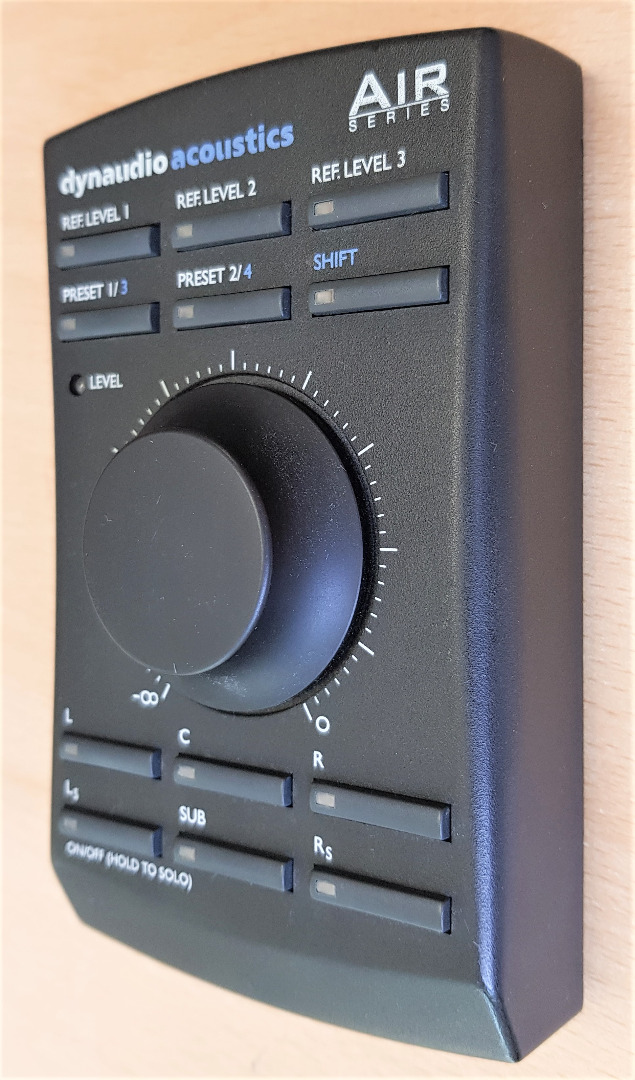

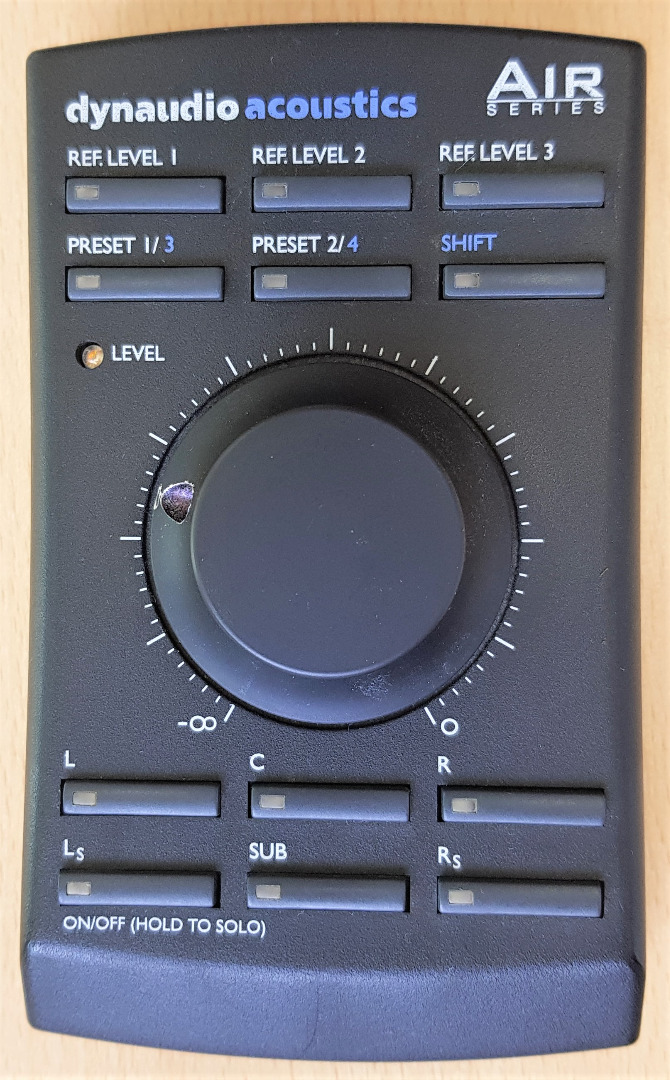

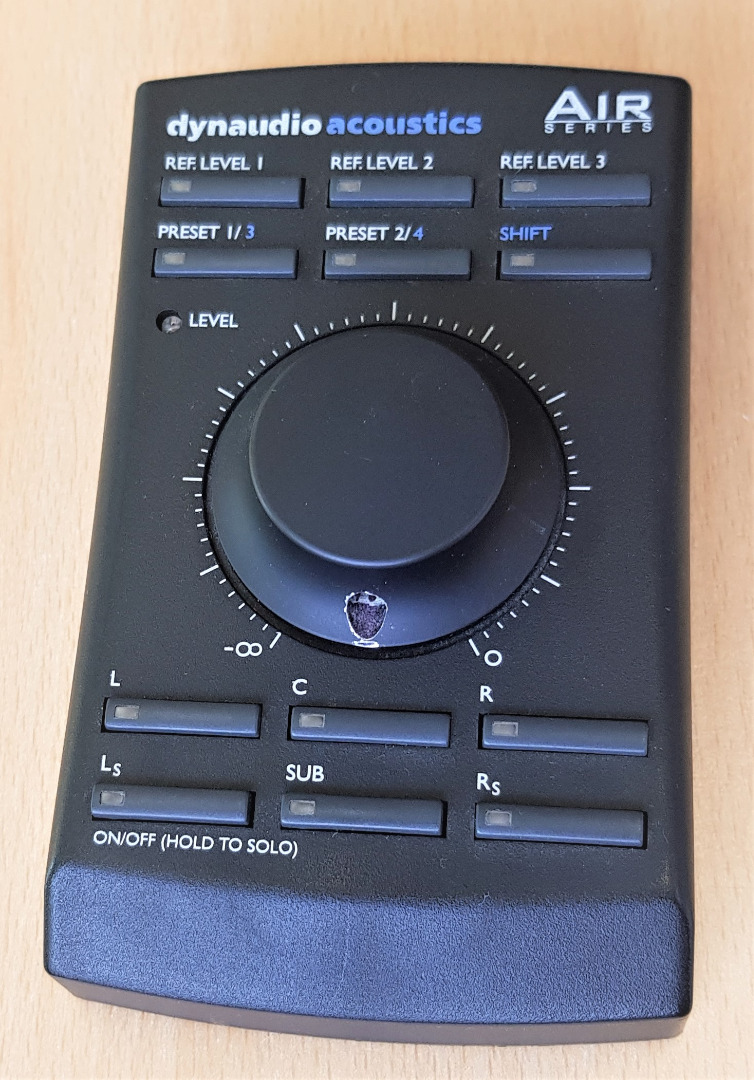

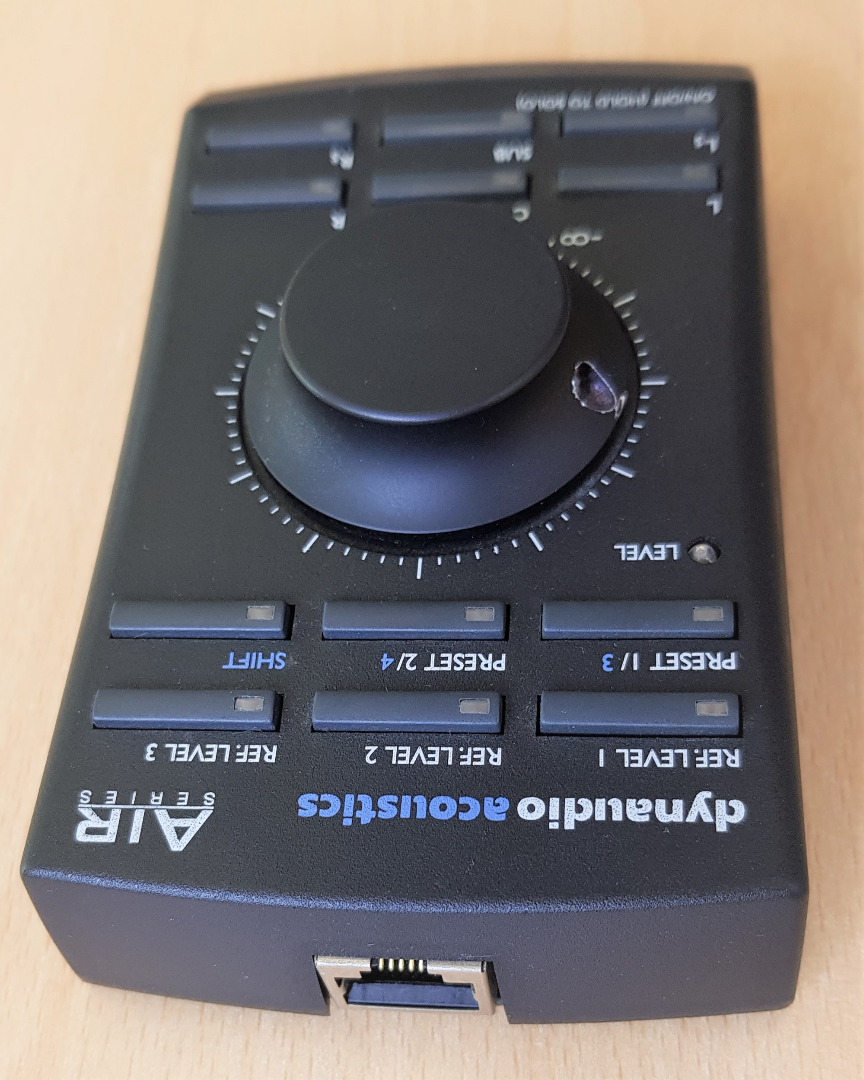

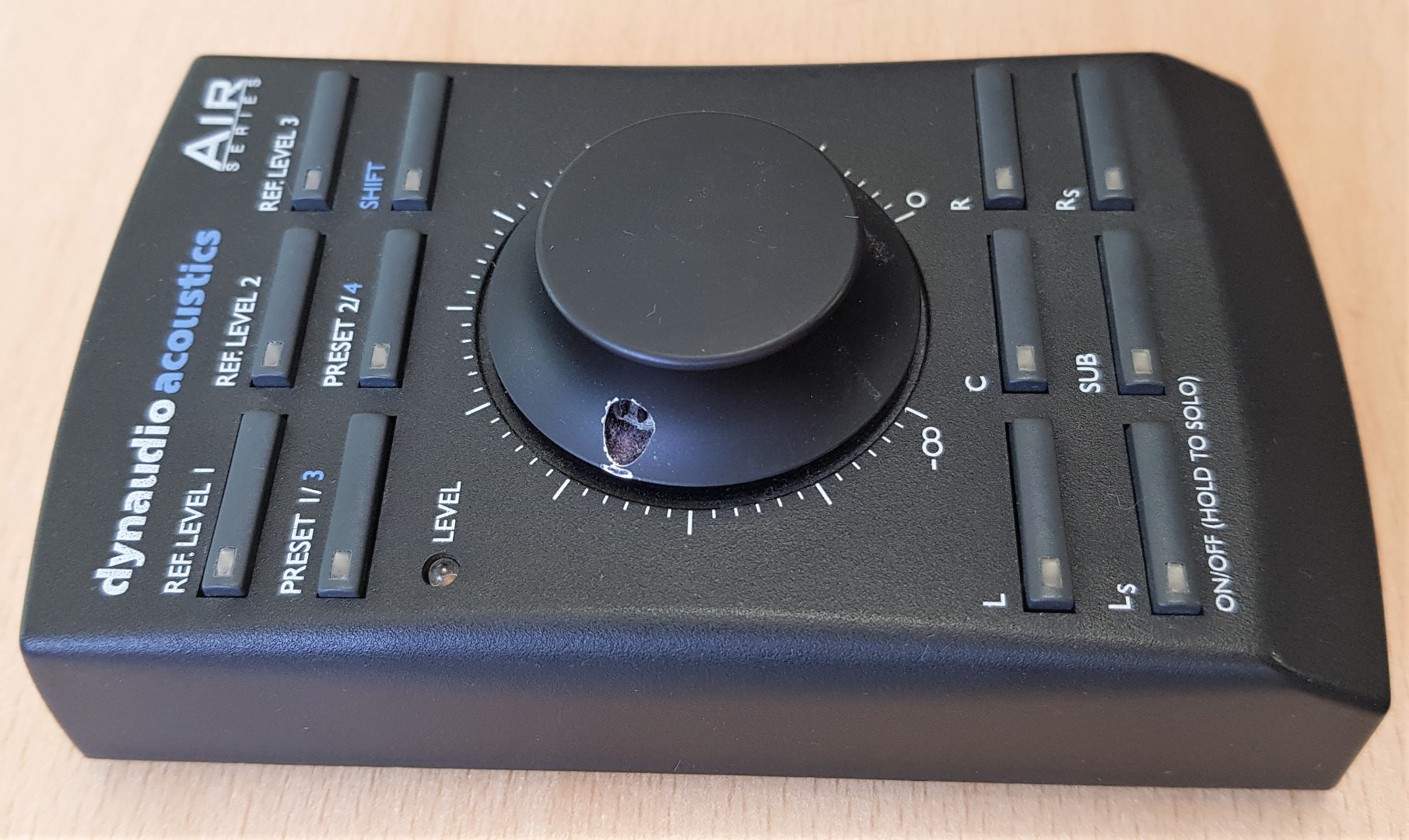

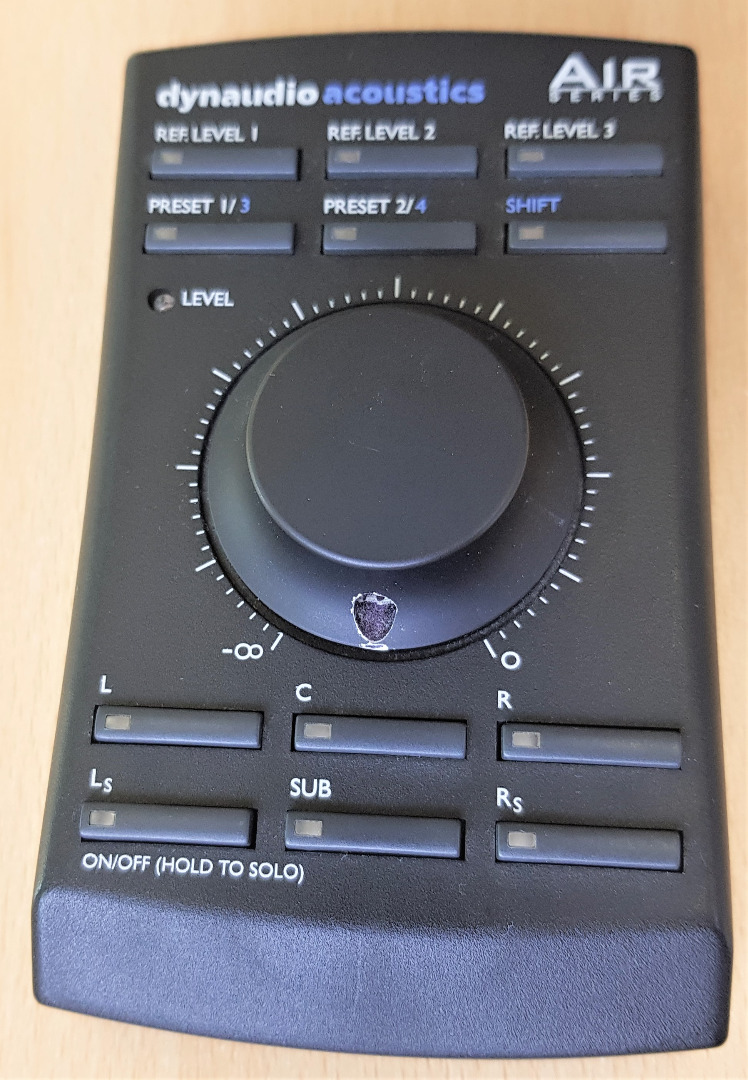

Central and Remote control of system and parameters
Direct Digital inputs and Analog inputs (optional)
Networking in-between all AIR components
Dedicated AIR Base subwoofers
Two times 200-watt amp package in each monitor


Model:  AIR 20
System:  Three way active monitoring system
Frequency Response (+/- 3 dB) : 31 Hz –22 kHz: +/- 3 dB
Peak SPL 1m, pair (IEC Short Term) > 131 dB peak
Peak SPL 2m, 5.1 (IEC Short Term) > 129 dB peak
Max SPL 1m, (IEC Long Term) 104 dB RMS
Precision of monitor matching: +/- 0.2 dB
Port tuning frequency: 40 Hz
Internal cabinet volume: 35 litres
Bass principle: Bass reflex
Crossover frequency: 390 Hz (DSP generated) and 2600 Hz
Crossover slope: 12 dB/oct and 6 dB/oct

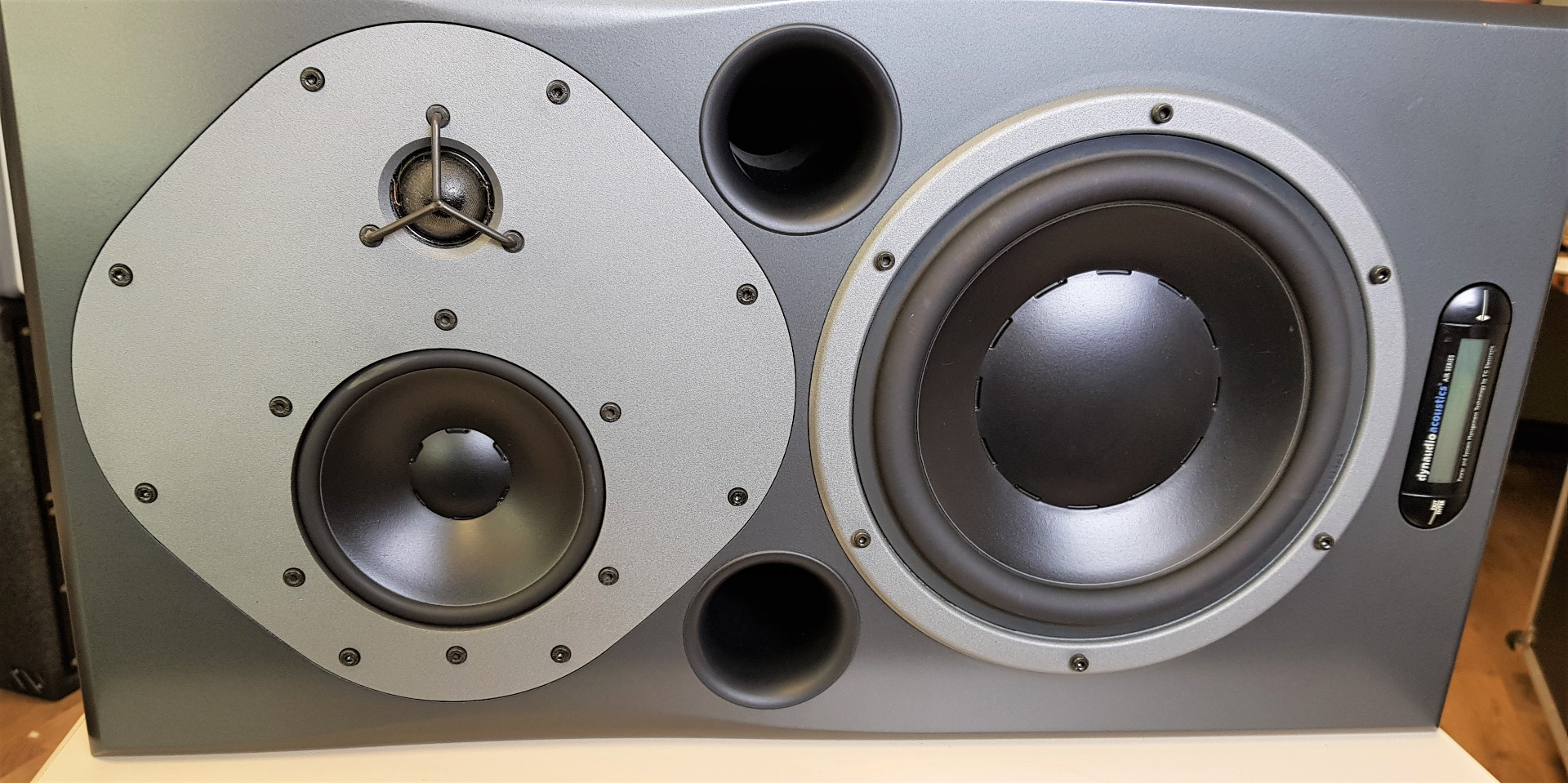

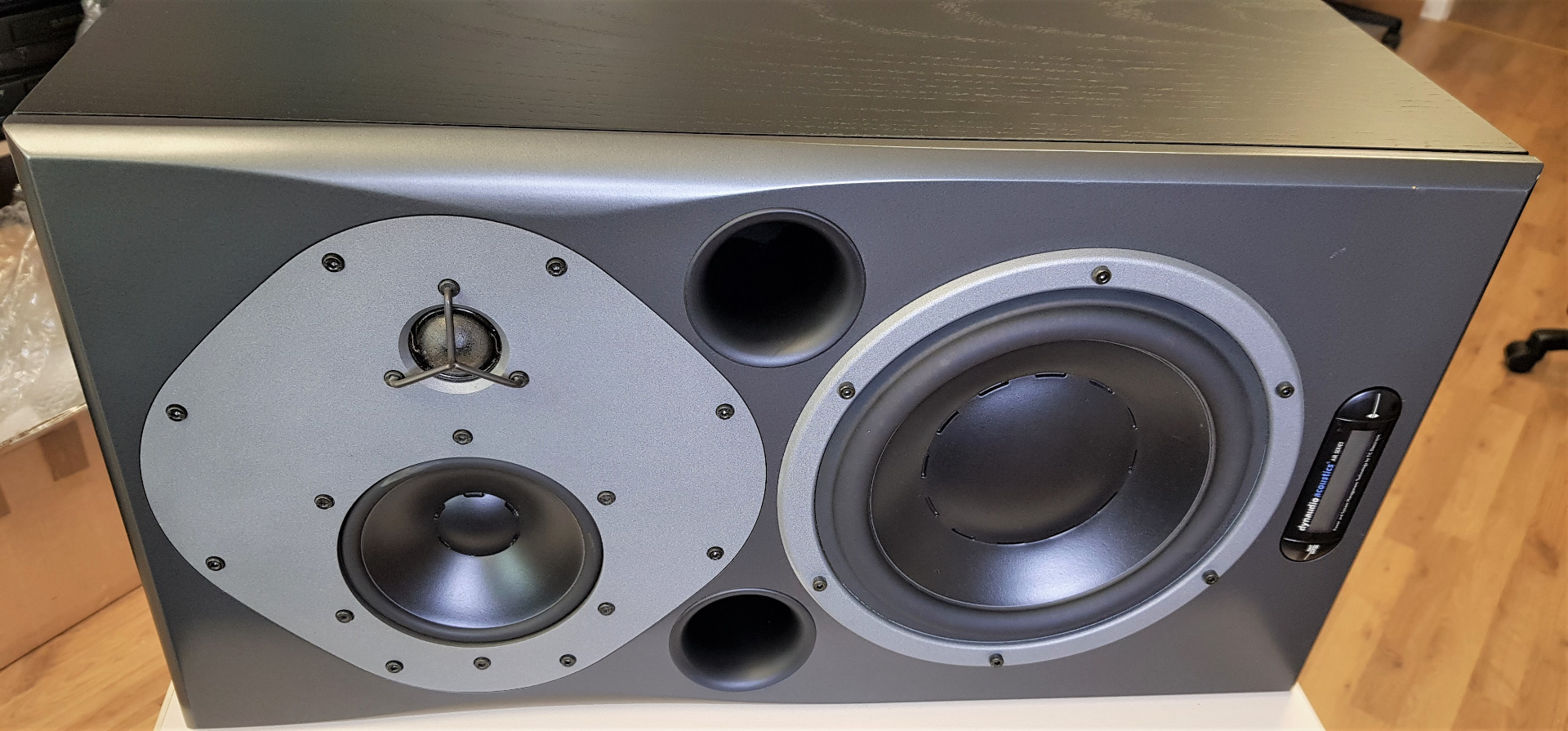

Tweeter: Esotar 28 mm / 1.1” soft dome, neodymium magnet, rear chamber, magnetic fluid, 4mm alu front, pure alu wire voice coil
Midrange: 145 mm / 5,5", one-piece molded polypropylene cone, 38 mm /
Woofer: 240 mm / 9,5", one-piece molded polypropylene cone, 100 mm /
Mains voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power consumtion: 45 W @ 1/8 max power (IEC 60065)

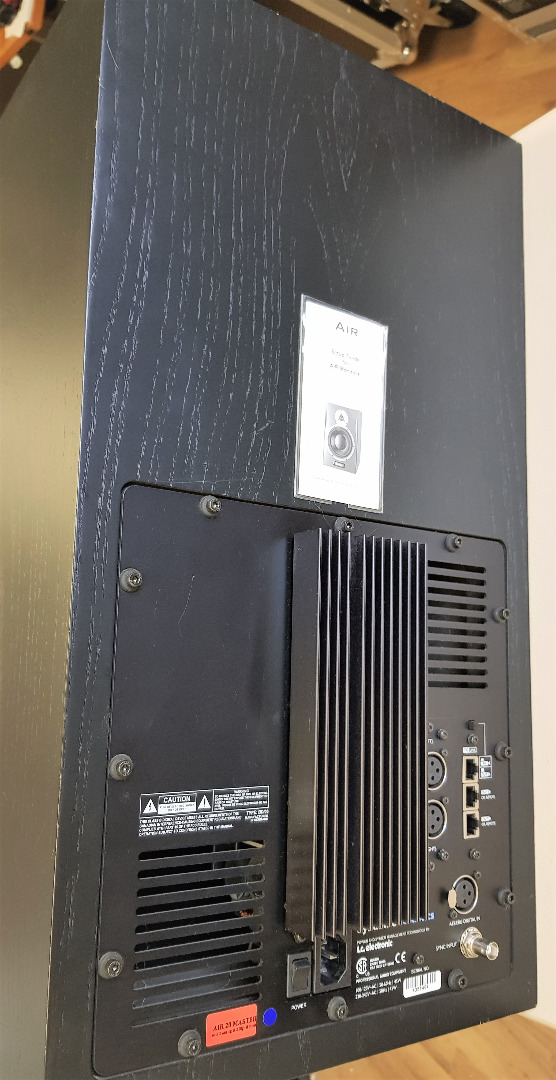

Amp: Black painted back plate

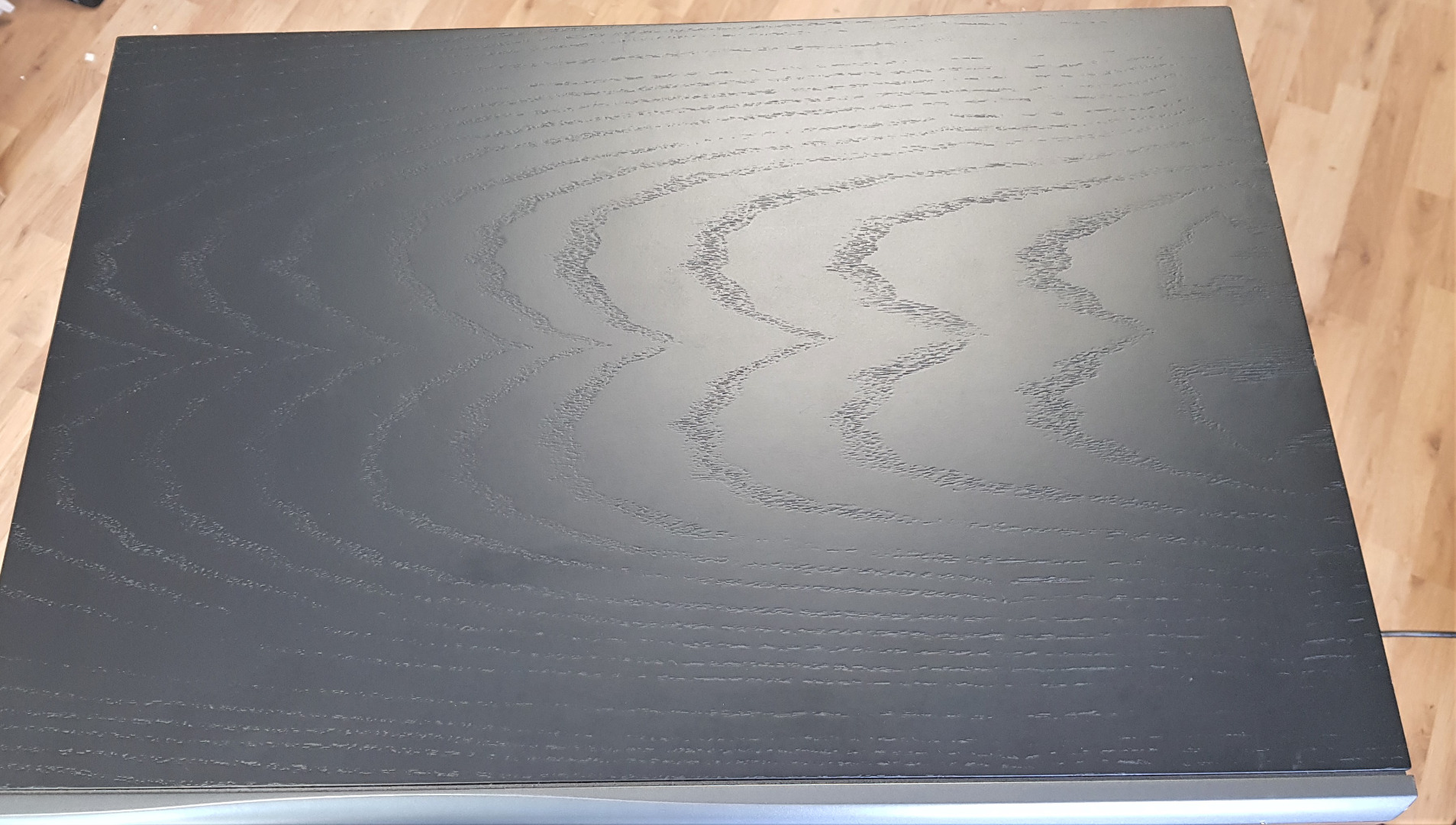

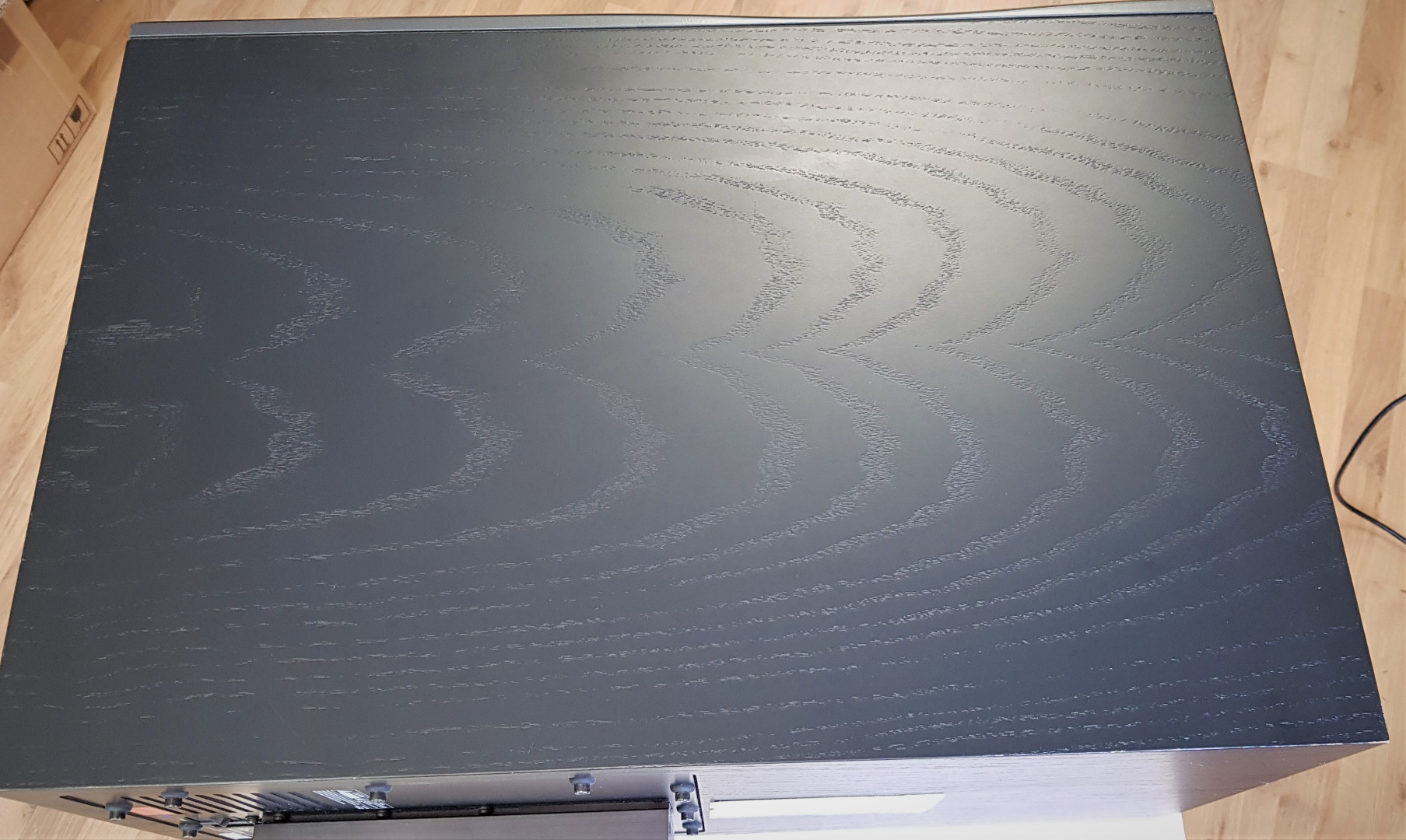

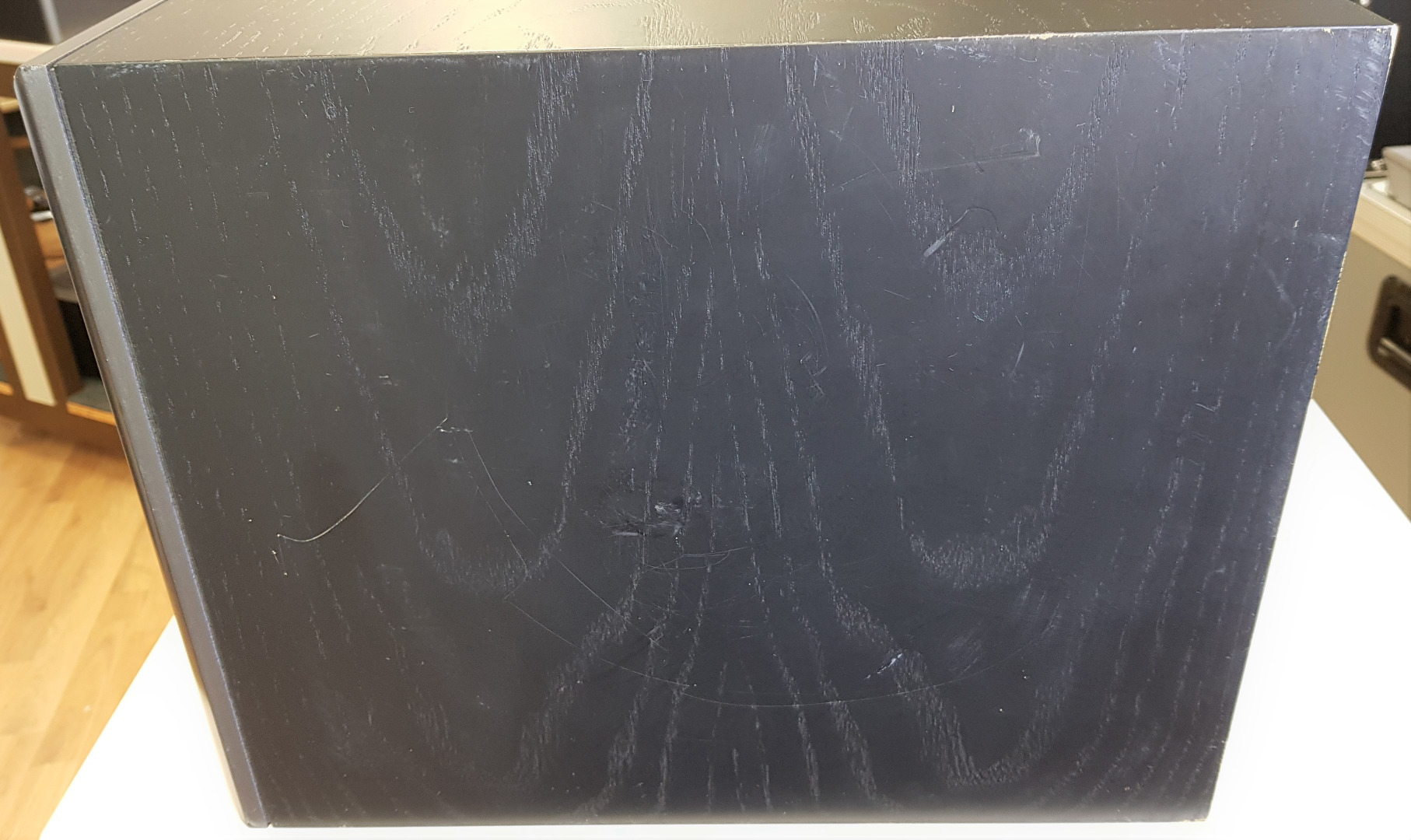

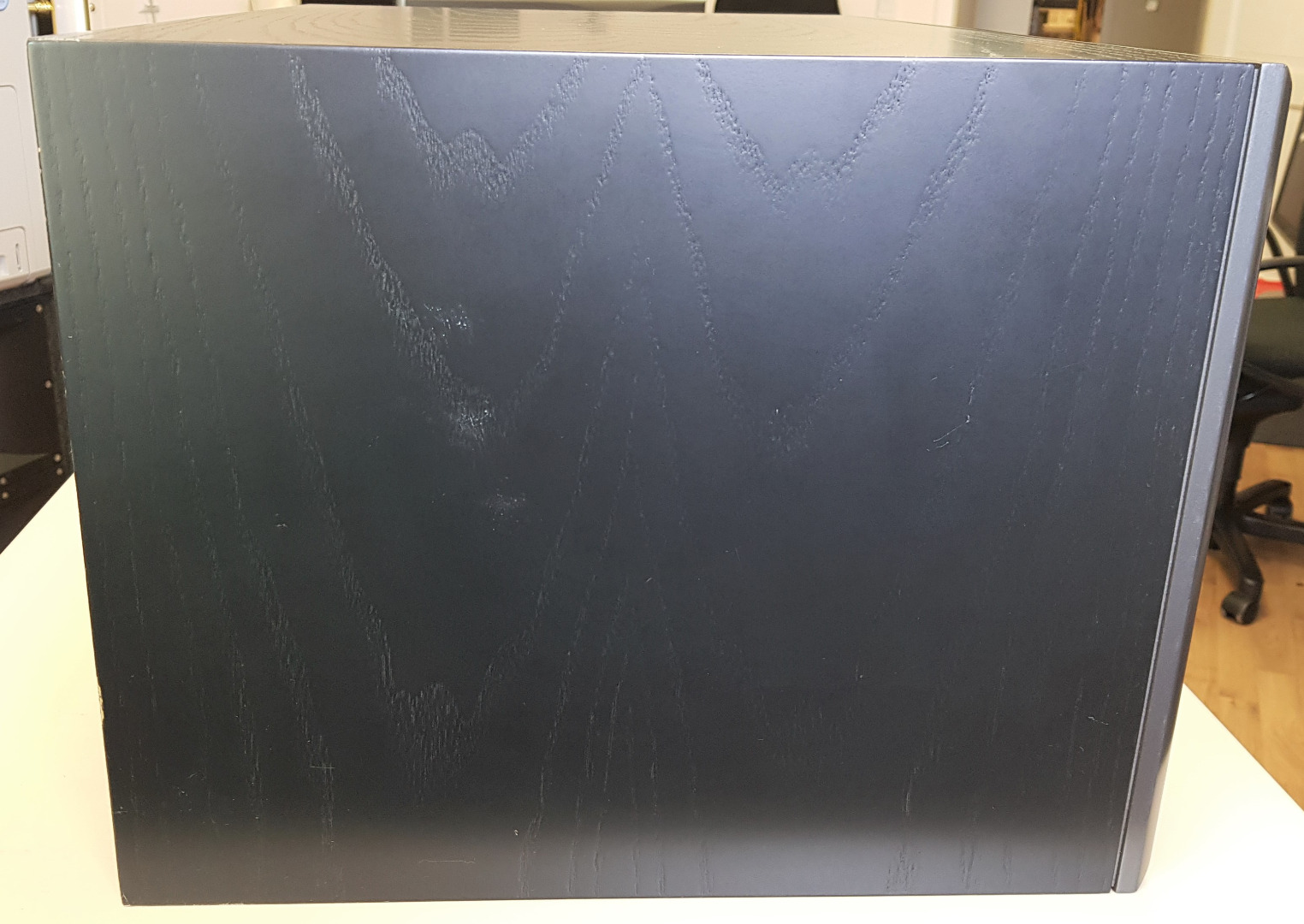

Cabinet: Black ash with dark gray MDF baffle
Dimensions (W x H x D): 575 x 310 x 395 mm / 22,6” x 12,2” x 15,5”
Weight: 28 kg / 62.2 lbs

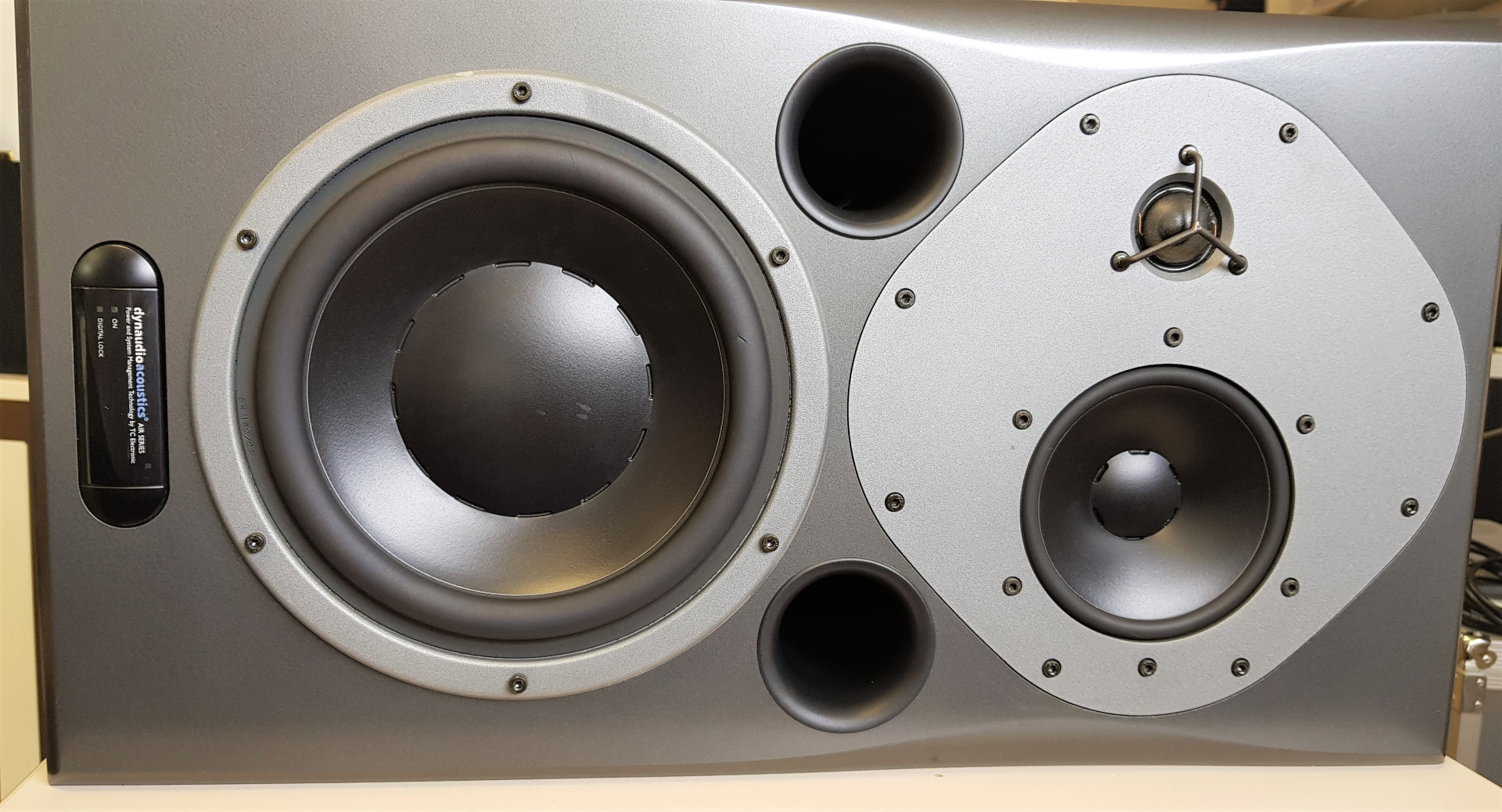

Tweeter, midrange and woofer
Tweeter & Midrange 200 W amp/Woofer 200 W amp
Typical listening distance: 1.5-3 m / 5-10.2 ft
Typical room size: 80-130 m3 / 2800-4600 ft3
Internal sample rate: 192 and 176.4 via Dual Wire (optional Digital Card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz

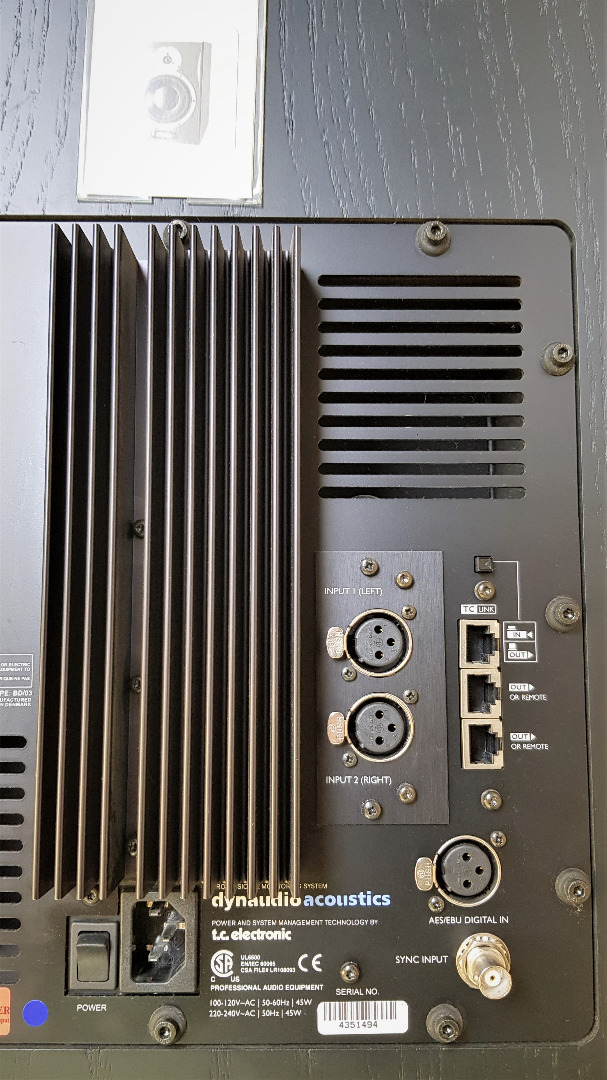

I/O Connectors: XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link
Formats: AES/EBU (24 bit)
Word clock input: BNC, 75ohm, 0.6-10 Vpp

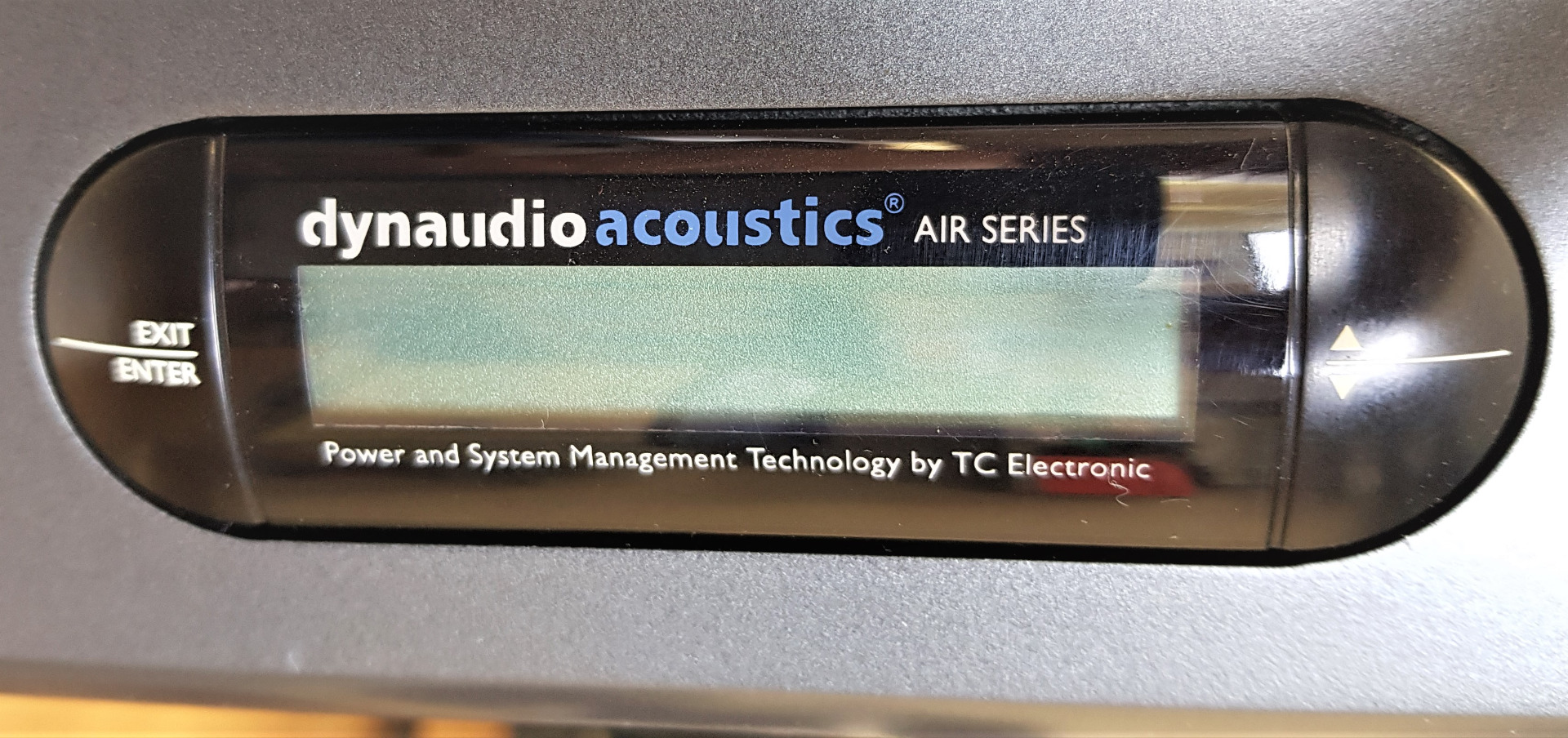

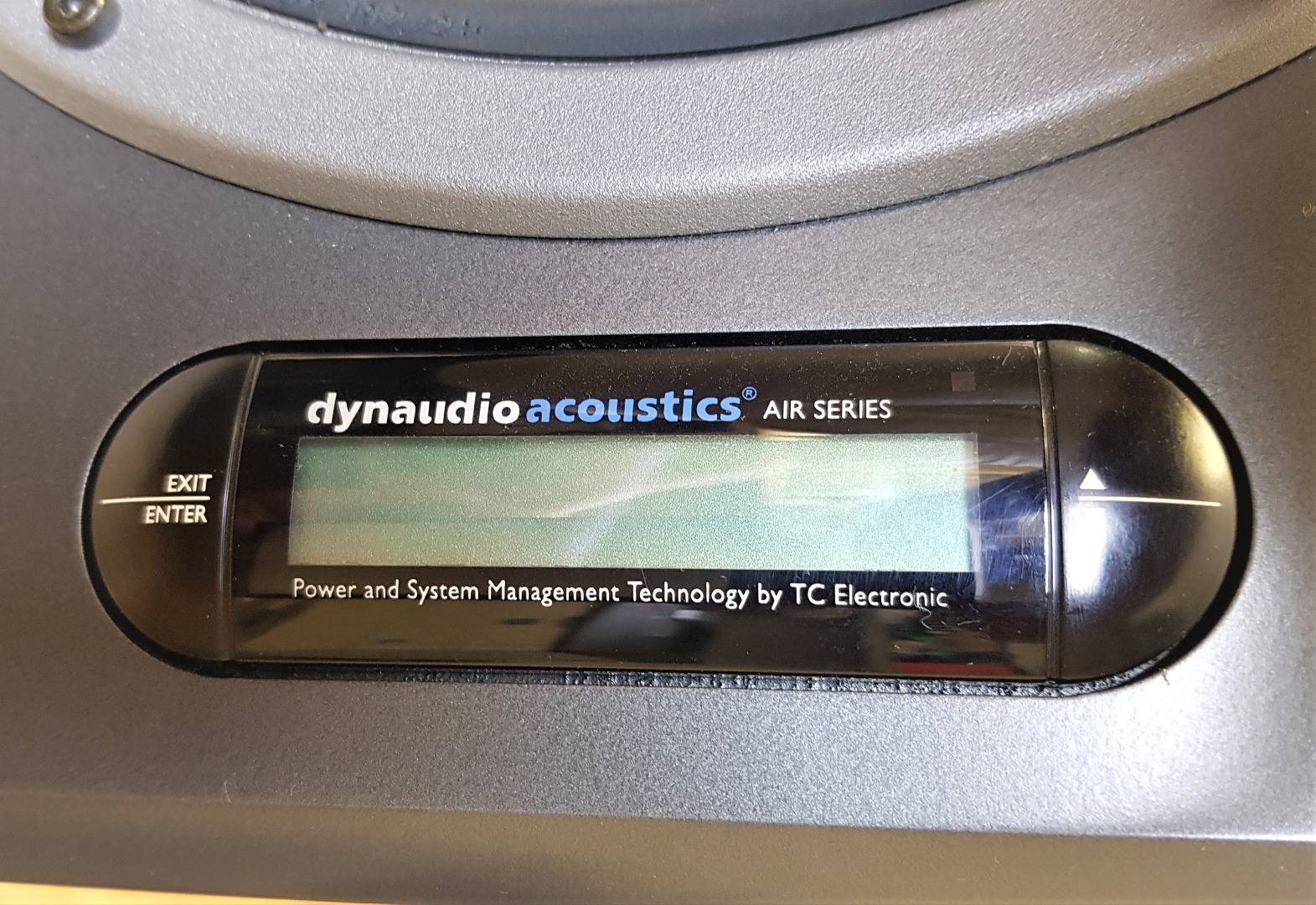

Display: 2 x 16 character dot matrix
Operation: Menu system / Four buttons
Input connectors: XLR balanced (pin 2+, pin 3-)
Impedance: 10/3 k ohm (Balanced/unbalanced)
Selectable Full scale Input level: +9, +15, +21, +27 dBu
Dynamic range: > 113 dB typ. (unweighted), BW: 20-20 kHz
THD+N: < -105 dB typ. @ 1 kHz, -3 dBFS
Crosstalk: < -120 dB, 20 Hz to 20 kHz
A to D Conversion: 24 bit (Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)
I/O Connectors: 2 x RJ45 proprietary TC-Link
Complies with: EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B

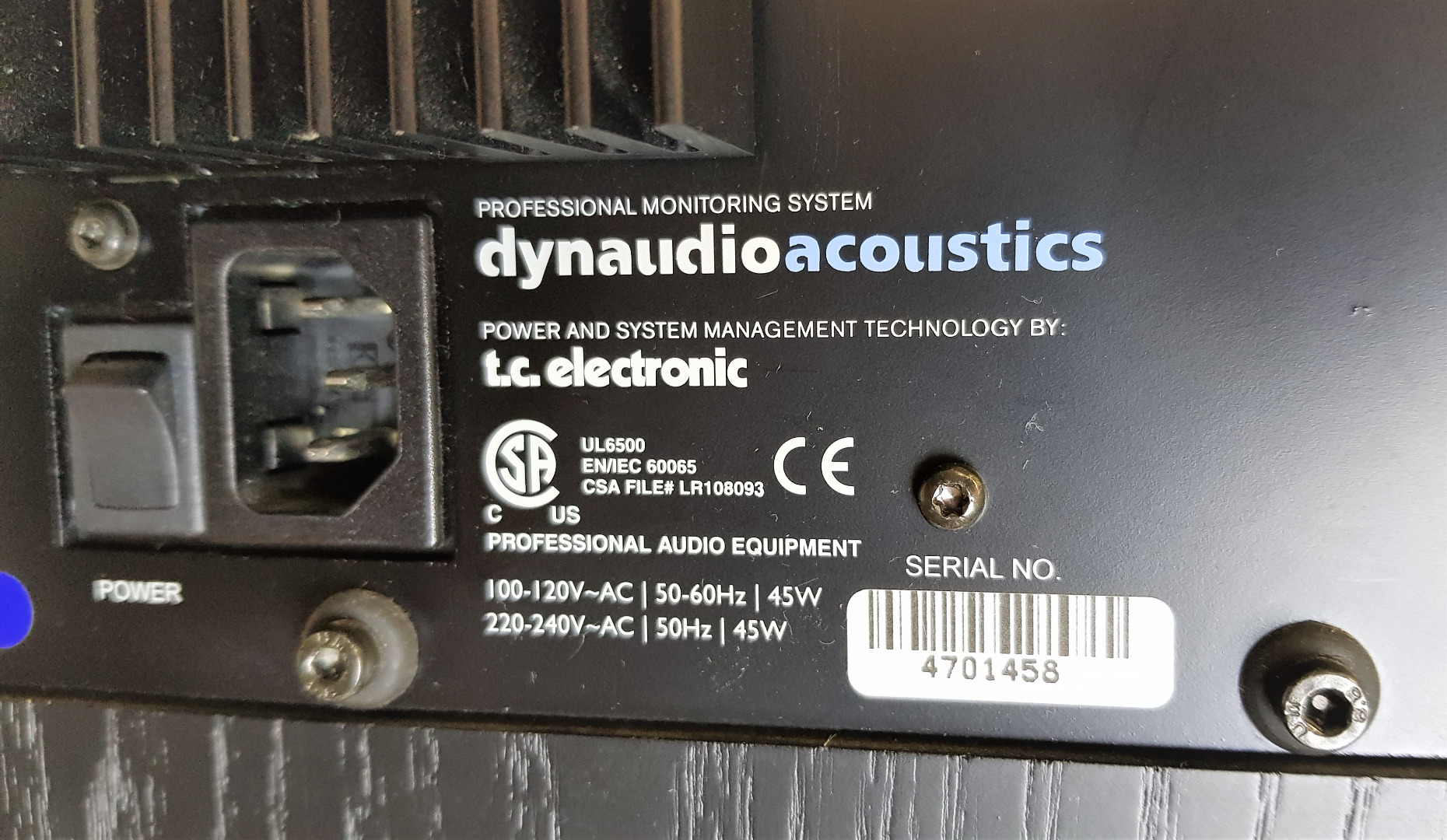

Certified to: IEC 60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093
Operating temperature: 32° F to 122° F (0° C to 50° C)
Storage temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing
