QSC AD-S6T Surface Mount Loudspeakers

6.5" 2-way, 105° conical DMT
Color: White (RAL 9010)

Included:
10 × QSC AD-S6T surface mount loudspeakers
2 × X-Mount
Only sold as a complete set

Details:
Fully functional.
Ideal for setups in a studio, venue, exhibition, bar etc

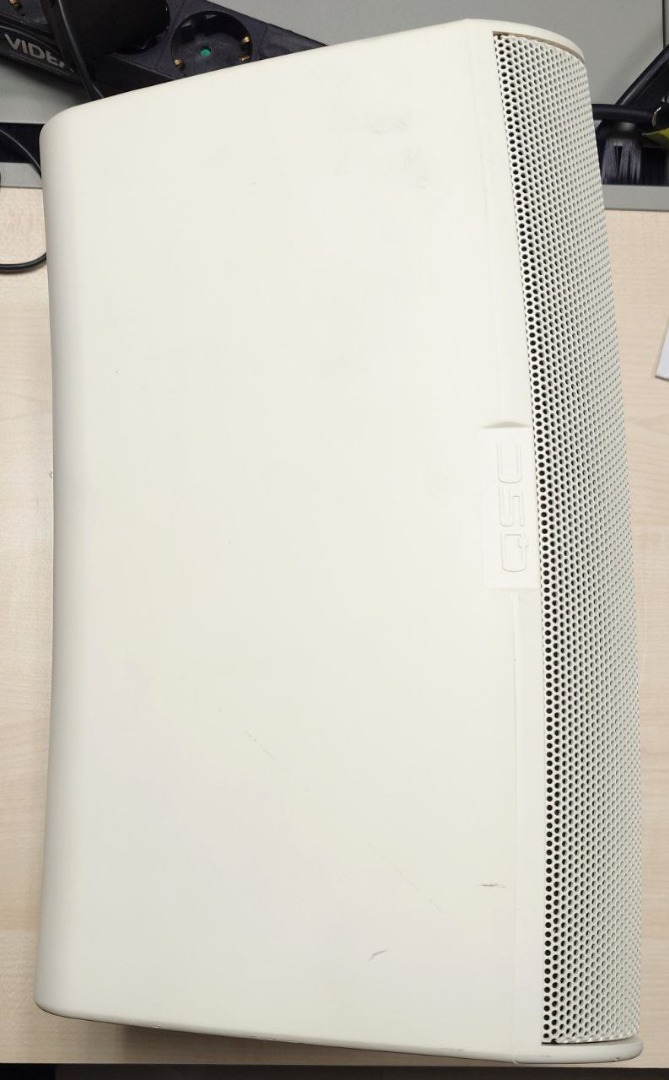

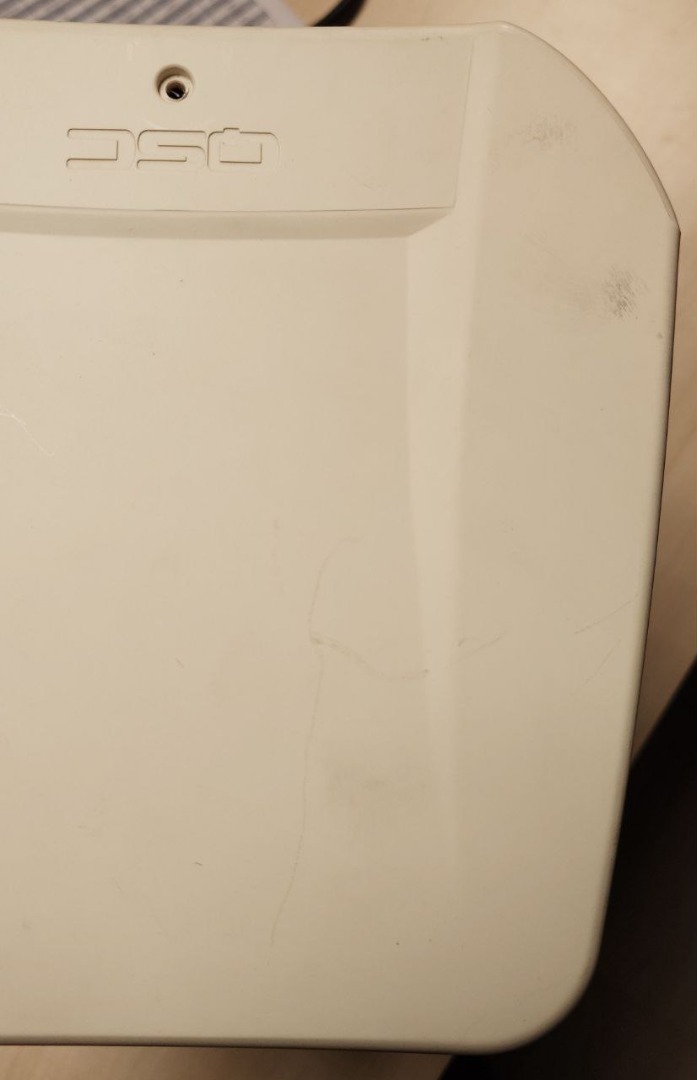

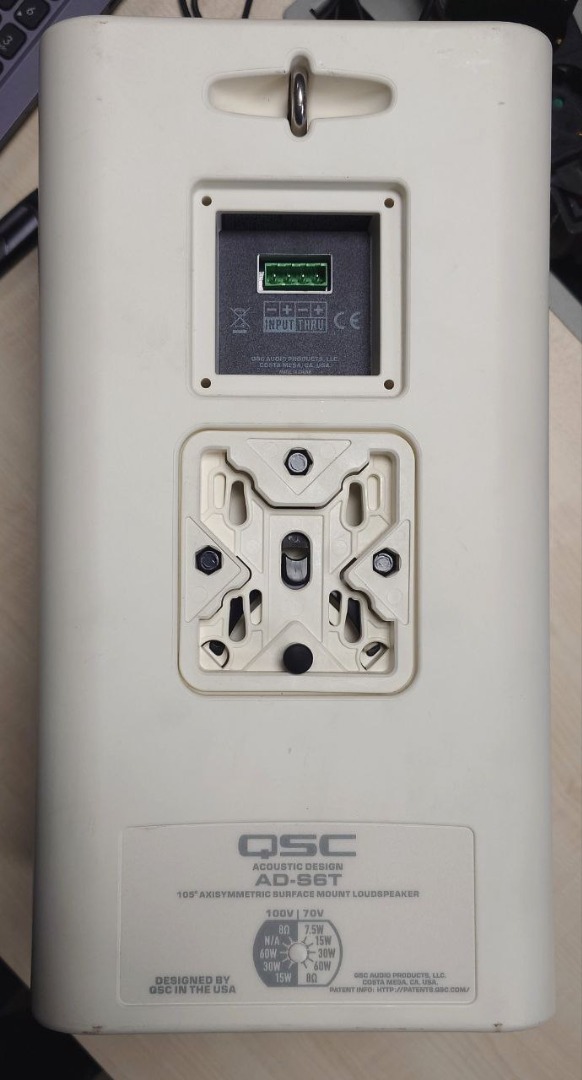

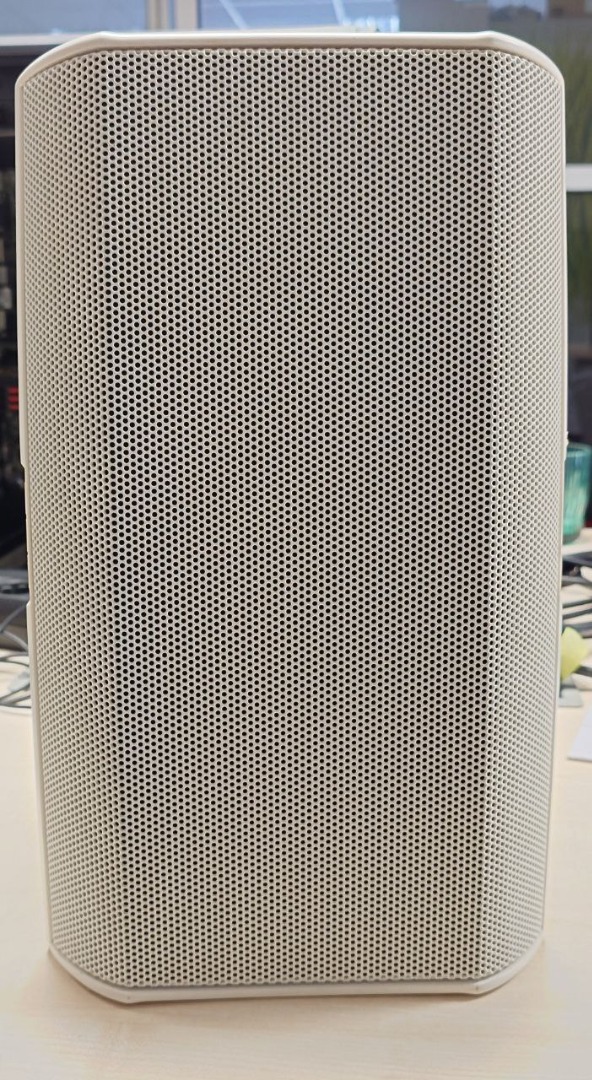

Some scratches and marks on the body. Currently, photos of one unit provided.

Previously installed at TalTech Mektory ScreenX
(https://balticmeetingrooms.com/en/gallery/292/3829-1920/conference-centre/taltech-innovation-and-business-centre-mektory.jpg)

Spec sheet:
https://qsys.com/resource-files/productresources/spk/ad/ad-s6t/q_spk_ads_6t_specs.pdf

QSC page:
https://qsys.com/products-solutions/loudspeakers/installed/passive/surface-mount/acousticdesign-series/ad-s6t/

System Details AD-S6T
Effective frequency range 60 Hz–20 kHz
Rated noise power / voltage 150 W / 35 V (RMS)
Broadband sensitivity 89 dB SPL
Coverage angle (-6 dB) 105° conical DMT
Maximum continuous SPL 110 dB
Maximum peak SPL 116 dB
Rated impedance 8 Ω
Recommended amplifier pwr 300 W
Transformer taps 70V: 60, 30, 15, 7.5 W and 8Ω bypass
Transformer taps 100V: 60, 30, 15 W and 8Ω bypass
HF transducer 1" silk dome tweeter / 1" voice coil, horn loaded
LF transducer 6.5" weather resistant paper cone woofer

1.5" / 38 mm voice coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
X-Mount material Powder coated aluminum

Ingress protection IP-54, designed for indoor and outdoor use
The AD Series loudspeakers qualified for outdoor use using the following tests:
Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
High and low temperature: tested to QSC internal standards between -20° and 50° C

Net weight 13.6 lb / 6.2 kg
Dimensions (HWD) inches 14.4 × 8.5 × 8.5
Dimensions (HWD) mm 365 × 215 × 215

Shipping:
Total weight ~72kg
Possible anywhere within EEA using DHL, Smartposti. Negotiable elsewhere.
