Ferrofish A32 Dante

Ferrofish A32 Dante
Included Accessories
* 2 × Power supplies
* 2 × Sub-D 25-pin to 8 × XLR female connectors
* 2 × Sub-D 25-pin to 8 × XLR male connectors



The A32 Dante is designed to deliver all the features that make Dante such a powerful audio-over-IP solution. This includes network redundancy and 64 channels of bidirectional audio transmission.
If required, the converter can seamlessly integrate isolated islands of analog, MADI, or ADAT equipment into your Dante network. Its internal routing matrix ensures that audio streams can be effortlessly merged with other channels—regardless of format—for a truly uncompromised audio experience.
Stress-Free Compatibility
The A32 Dante is fully compatible with any Dante-enabled device. All that is needed is a standard Cat 5/6 cable to establish a connection. Recording or mixing from any room with a Dante LAN connection is easily achieved—simply connect the converter and start working.

Key Features
* Versatile headphone output with monitoring matrix for mono, stereo, and submix signals
* MIDI I/O (5-pin DIN) and MIDI over MADI support
* Thermally compensated oscillator with proprietary active jitter-reduction circuitry
* Integrated reset management
* Powerful SHARC DSP, processing up to 386 audio channels

Specifications
* Type: AD/DA Converter
* Channels: 32
* A/D Conversion: Yes
* D/A Conversion: Yes
* Sample Rate: Up to 192 kHz
* Bit Depth: 24-bit

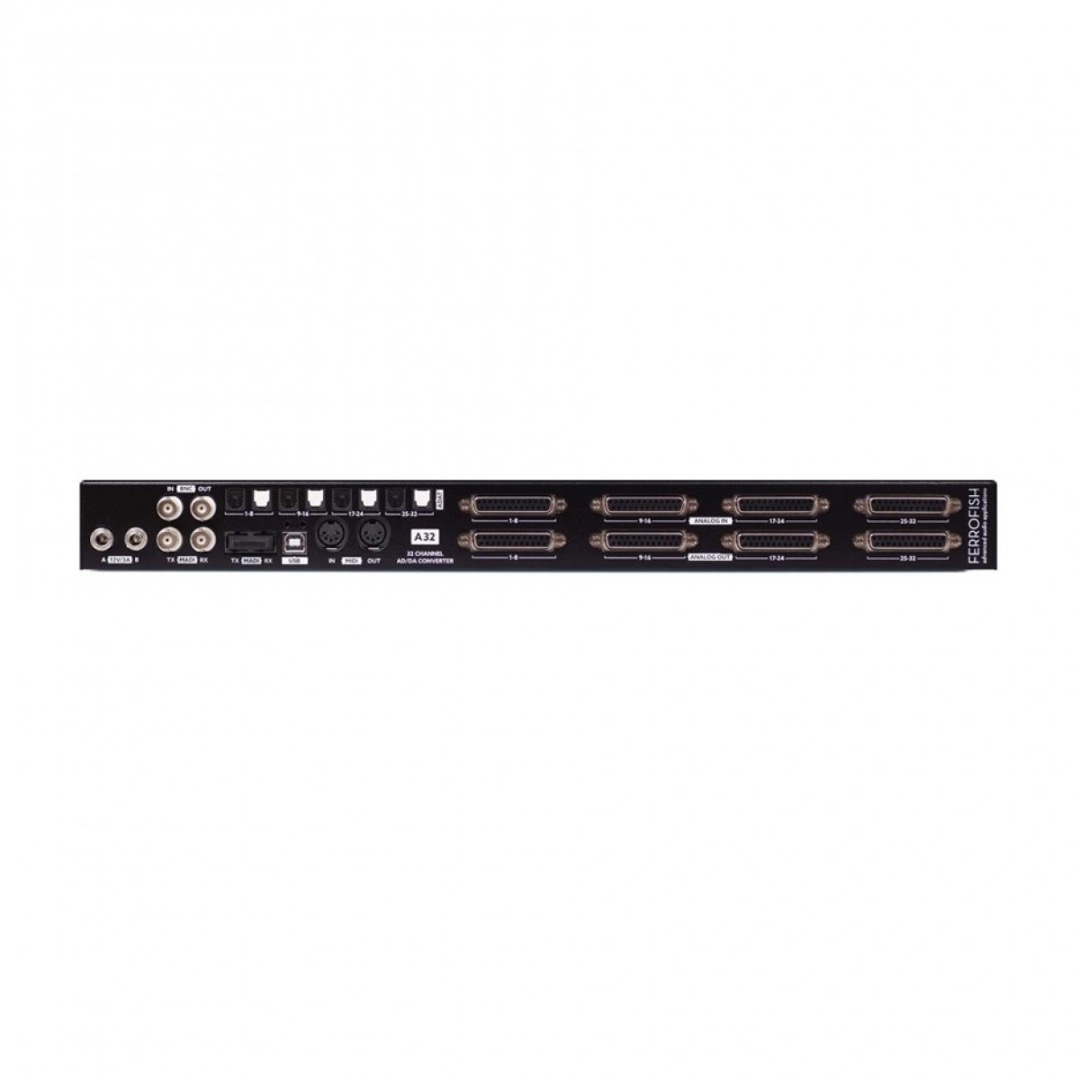

Analog I/O
* Inputs: 4 × DB-25
* Outputs: 4 × DB-25, 1 × 1/4" headphone output
Digital I/O
* Inputs:
* 4 × Optical Toslink (ADAT, S/PDIF)
* 1 × BNC (MADI)
* 1 × Optical SC (MADI)
* Outputs:
* 4 × Optical Toslink (ADAT, S/PDIF)
* 1 × BNC (MADI)
* 1 × Optical SC (MADI)
Connectivity
* USB: 1 × Type B
* Network / Data I/O: 2 × RJ45 (Dante)
* MIDI I/O: In / Out
* Word Clock Input: 1 × BNC
* Word Clock Output: 1 × BNC
Physical & Power
* Rack Size: 1U
* Power Supply: External 12V
* Height: 1.75"
* Width: 19"
* Depth: 10.6"
Product Code: FRE-A32-DANTE
