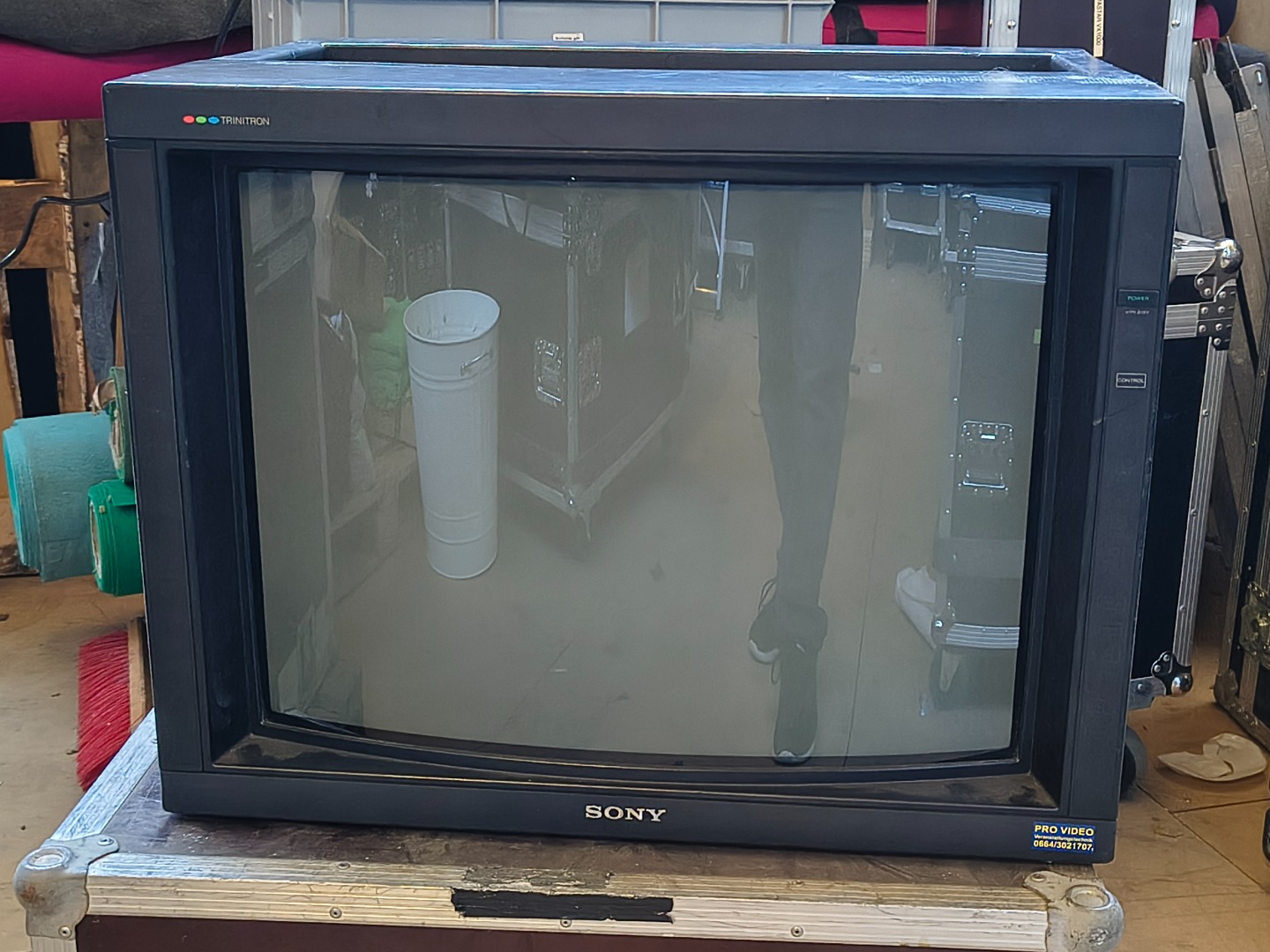

Sony PVN 2730QM Röhrenmonitor 27 Zoll

WIr verkaufen unsere Röhrenmonitore:

The Sony ProFeel Pro (1986) monitor, commonly known as the Sony Cube, represents a high point in the developmental history of monitor technology and product design. This monitor incorporated the bright high-quality Trinitron screen (the brand name for a product line of aperture grill-based CRT screens) that had been developed during the 1960s, and which then underwent successive improvements.



The definitive cuboid form of the Sony ProFeel Pro (1986) had not previously been a feature of monitor casing design in Sony’s range. Formerly, the dimensions of the back edge of the monitor had not been identical to the front; instead, the casing at the rear of the screen had been visibly narrower. In contrast, and distinctively, however, the Sony ProFeel Pro articulates the quintessential cuboid form, with its operational components removed from view and suspended within the back frame. The cuboid shape of the monitor casing facilitates the stacking of monitors, while also functioning as a grip-bar, which assists in carrying. These practical attributes of the design substantially enhance the utility and versatility of the equipment for exhibition purposes.
PAL, SECAM, NTSC, NTSC 4.43
(automatically selected)
CRT type 677 mm (27") Trinitron tube
visible picture size 635 mm (25") measured diagonally,
114° deflection, AG pitch 0.73 mm
Resolution 600 TV lines at center
Color temperature 3200K, 6500K, 9300K (factory preset 6500K)
Audio power output 8 to 16 Ω, 7 W + 7 W
Power requirements 220 to 240 V, 50/60 Hz
Power consumption Approx. 165 W (typical), 180 W (max.)
Operating temperature 0 to 35° C (32 to 95° F)
Dimensions (w × h × d) 65.3 × 50.8 × 49.2 cm
Plinth dimensions (w × d) 65.3 × 44 cm
Weight Approx. 52 kg (114 lb 10 oz)
Video inputs Line 1/2
Composite: Loop-through BNC
1Vp-p, sync negative,
Automatic 75 Ω termination
Y/C: Loop-through Mini DIN 4-pin
Y (luminance): 1Vp-p sync negative
C (chrominance): 0.286Vp-p (NTSC), 0.3Vp-p (PAL)
Automatic 75 Ω termination
Audio Inputs Line 1/2: Loop-through phono
-5dBu, high impedance
Optional accessories Speaker system: SS-X6A
