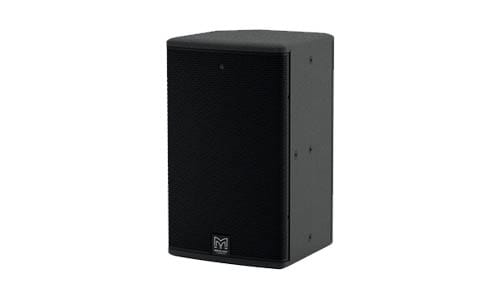

Martin Audio CDD-LIVE 12 self-powered two-way speaker

The CDD-LIVE 12 is a high-performance, self-powered system designed for professional applications that require high output levels and exceptional fidelity from a very compact enclosure. With a peak output capability of 128dB at 1 metre, it is the ideal solution for a multitude of premium stand-alone and distributed sound reinforcement requirements — from touring, theatre and portable live sound, to concert hall and HoW installations, AV events and stage monitor use.


TYPE Compact, Coaxial Differential Dispersion powered two-way system
FREQUENCY RESPONSE (1) 62Hz – 20kHz ±3dB, -10dB @ 50Hz
DRIVER LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF
HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver
INPUT SENSITIVITY -30dBu for 100dB SPL
MAXIMUM SPL (2) 122dB continuous / 128dB peak
DISPERSION 110˚-60˚ horizontal, 60˚ vertical (user-rotatable)
CROSSOVER 1.5kHz Active LR8 with low latency HF FIR equalisation
Balance presets for pole mount/ pole mount with sub/ stage monitor
