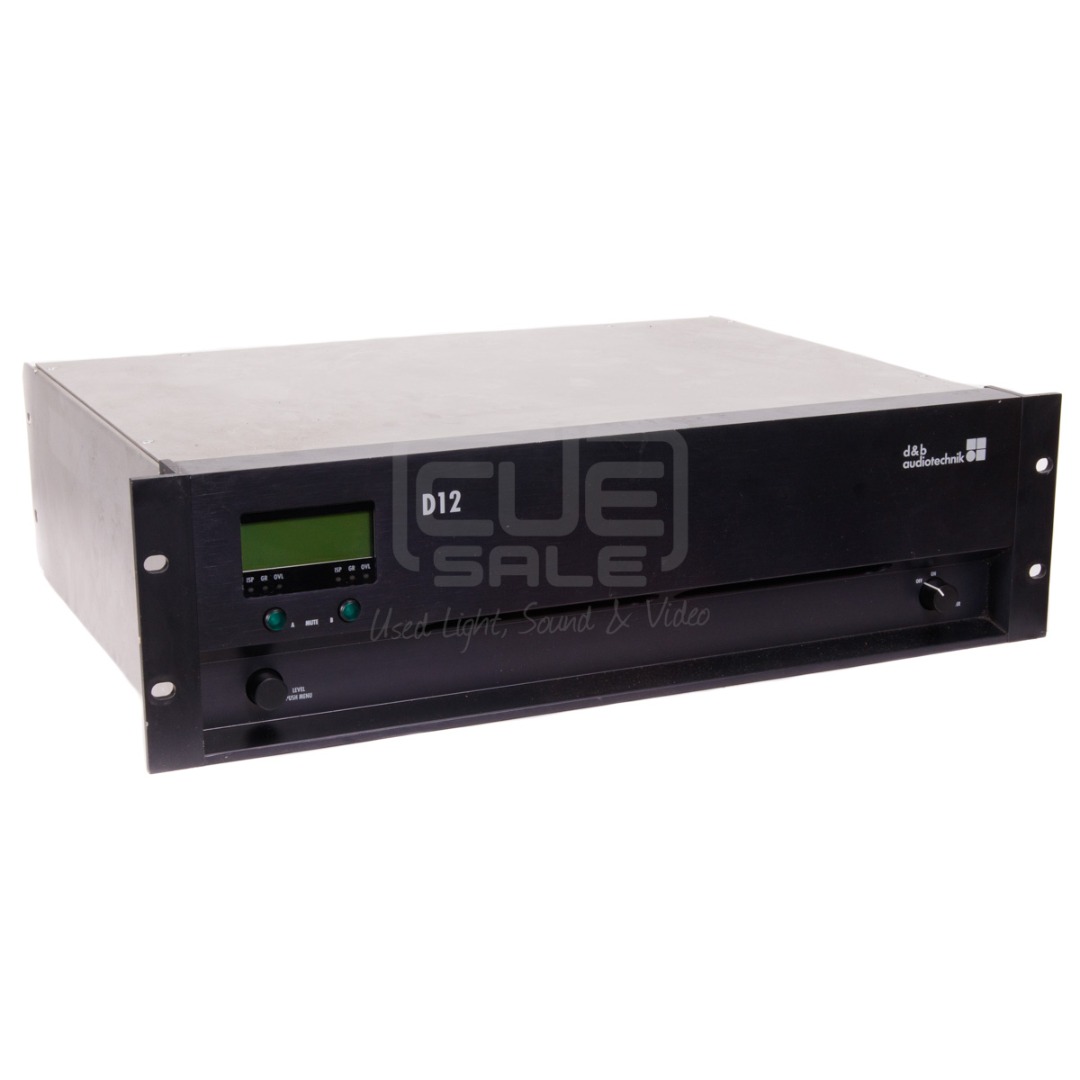

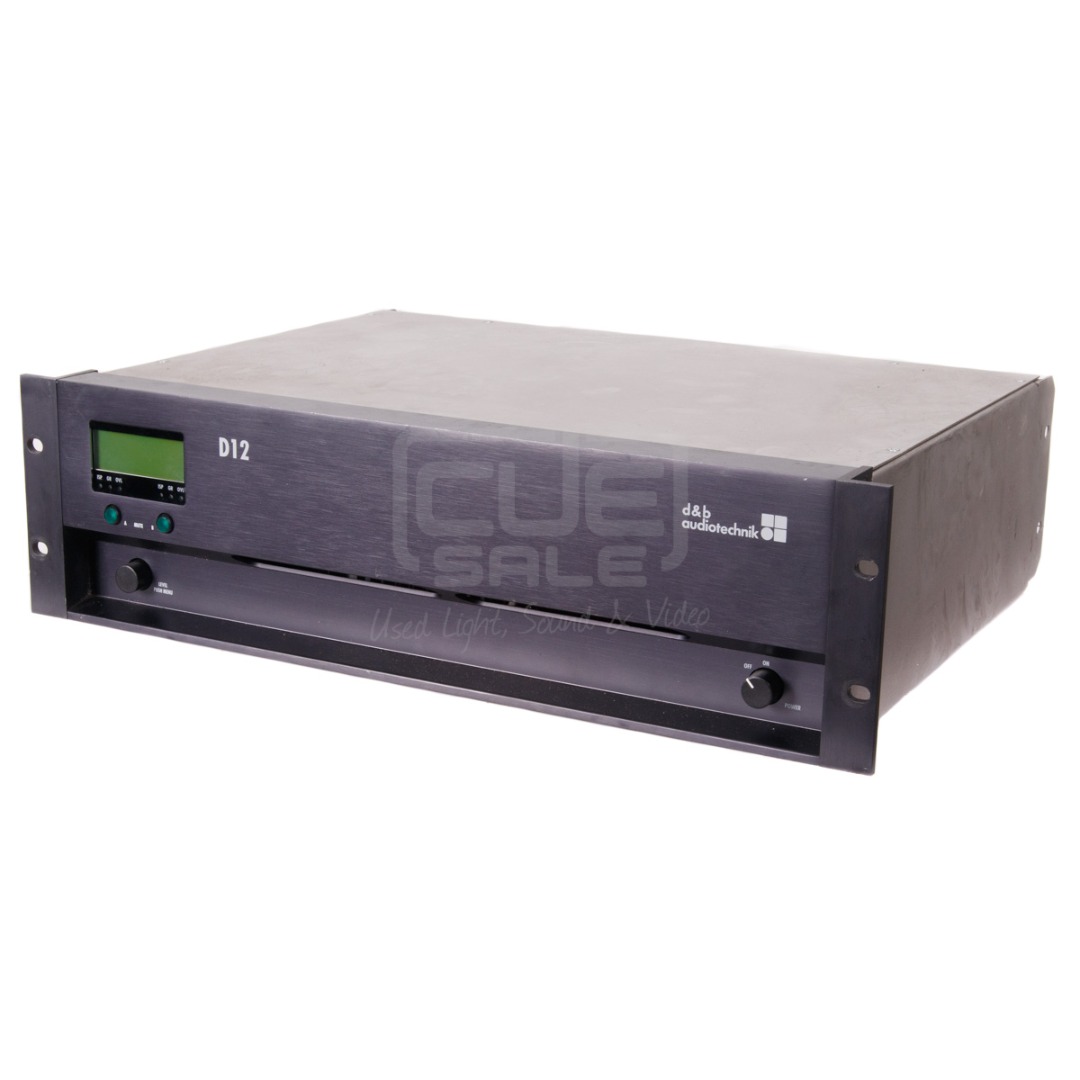

D&B D12 EP5 Power Amplifier

D&B D12 EP5 Power Amplifier
Order now: https://cuesale.com/product/db-d12-ep5-amplifier/


Dual channel amplifier

Maximum output power
2 x 1200 W into 4 Ω.
The 3 RU two channel D12 amplifier delivers medium to high power into low impedance loads between 4 and 16 ohms and is ideally suited for use in both mobile and installation environments. The D12 contains setups for all d&b loudspeakers and a linear mode. The signal delay capability enables user definable settings of up to 340 msec (=100 m/328.1 ft) to be applied independently to each channel. The same applies to the 4-band parametric equalizer, providing optional boost/cut or notch filtering. The D12 incorporates a digital rotary encoder and a LCD display to configure the amplifier. The D12 utilizes an autosensing switch mode power supply for mains voltages 120 V/230 V, 50 – 60 Hz (optional 100/200V).

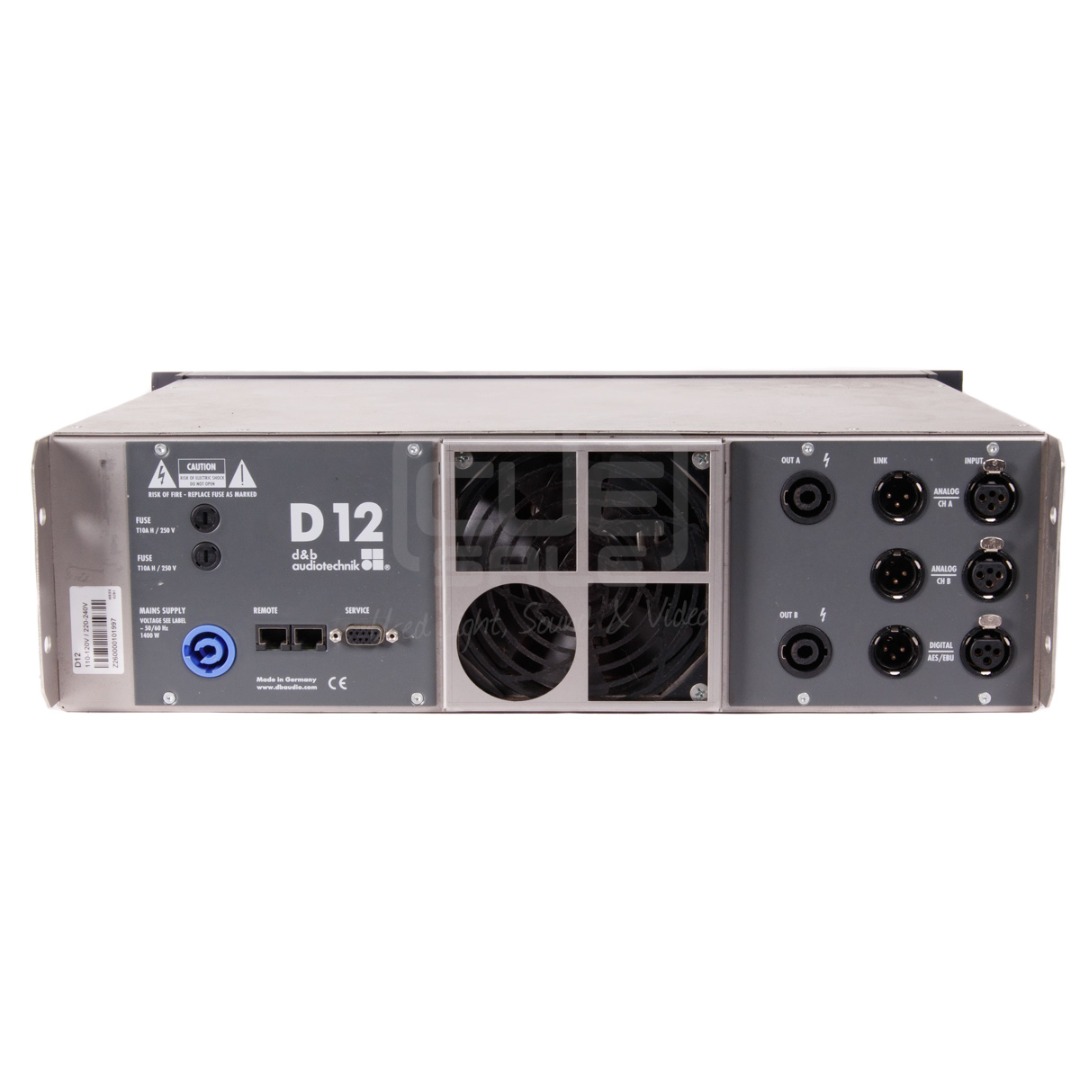

The D12 amplifier incorporates d&b SenseDrive for accurate control of LF drivers in d&b loudspeakers driven in 2-Way Active mode or in actively driven d&b subwoofers. When the D12 is fitted with EP5 connectors and appropriate 5 wire cabling, d&b SenseDrive can be used, resulting in an extremely precise bass performance even at high levels. NL4 and NL8 connector options are also available. RJ 45 connectors enable access to the Remote network via CAN-Bus. d&b System check verifies that the system performs within a predefined condition, whilst d&b Load monitoring enables an automatic and continuous impedance monitoring. Both can determine the status of an LF or HF driver in systems with multiple elements, even if these are crossed over passively.

Digital Signal Processing
Equalizer: 4-band PEQ/Notch
Latency analog and digital inputs: 0.3 msec.
Delay setting: 0.3 – 340 msec. with 0.1 msec. detents
Configurations: current d&b loudspeakers and linear mode
Function switches: d&b loudspeaker specific circuits
Frequency generator: Pink noise or Sine wave
Sampling rate: 96 kHz/27 Bit ADC/24 Bit DAC

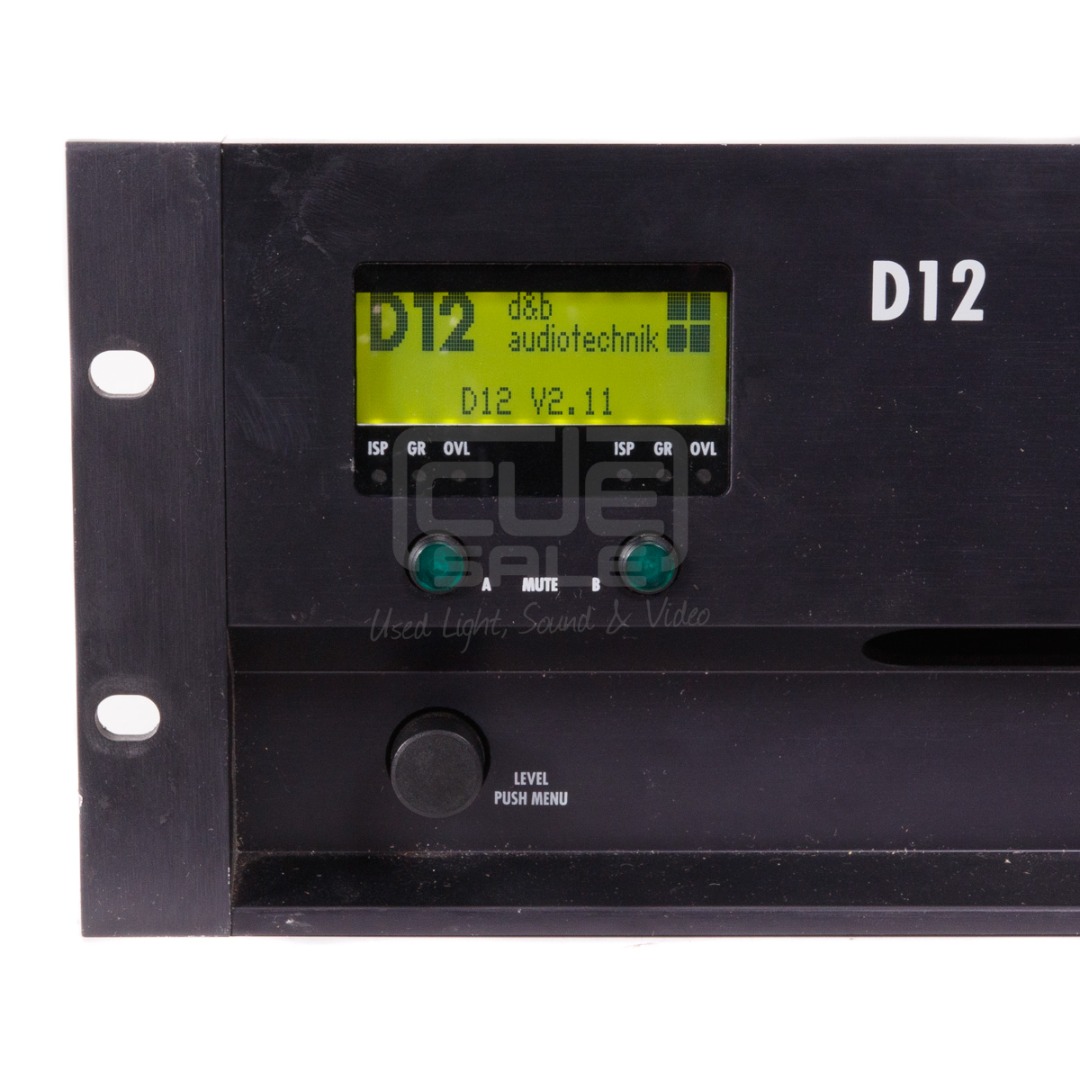

Controls and indicators
Power: Mains power switch
Scroll/Edit: Digital rotary encoder
Display: Liquid Crystal Display (LCD)/120 x 32 pixel
ISP, GR, OVL A/B: LED indicators


€1595,00 Ex V.A.T. (MwST) per piece.

Prices are Excluding 21% VAT / MwSt.

Products are located in The Netherlands, customers with a V.A.T. ID number pay 0% V.A.T. / MwSt
Please send us your full address for a shipment quote / price.

For more used equipment check our other advertisements on this site or have a look at our website www.cuesale.com
